DL250 WHEEL LOADER PARTS DL250 DIFFERENTIAL FRONT AXLE (5001~10184), DL250 DIFFERENTIAL FRONT AXLE (10185~), DL250 AXLE CASING FRONT AXLE (5001~10184), DL250 AXLE CASING FRONT AXLE (10185~) DL250 PLANETARY GEAR FRONT AXLE (5001~10184), DL250 PLANETARY GEAR FRONT AXLE (10185~), DL250 BRAKE FRONT AXLE (5001~10184), DL250 BRAKE FRONT AXLE (10185~)

211-00167B K9000628 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000631 K9000632 K9000633 K9000634 K9000635 K9000636 K9000637 K9000638 K9000639 K9000640 K9000641 K9000642 K9000643 K9000644 K9000645 K9000646 K9000647 2.123-00199 K9000708 K9000649 K9000710 K9000652 K9000653 K9002704 K9002705 K9002706 K9000657 K9000658 K9000659 K9000660 K9000661 K9000662 K9000663 K9000664 K9000665 110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268

 *KOREA PARTS* DL250 WHEEL LOADER PARTS DL250 DIFFERENTIAL FRONT AXLE (5001~10184), DL250 DIFFERENTIAL FRONT AXLE (10185~), DL250 AXLE CASING FRONT AXLE (5001~10184), DL250 AXLE CASING FRONT AXLE (10185~) DL250 PLANETARY GEAR FRONT AXLE (5001~10184), DL250 PLANETARY GEAR FRONT AXLE (10185~), DL250 BRAKE FRONT AXLE (5001~10184), DL250 BRAKE FRONT AXLE (10185~), DL250 DIFFERENTIAL REAR AXLE (5001~5184), DL250, AXLE CASING REAR AXLE (5001~5184), DL250 PLANETARY GEAR REAR AXLE (5001~5184), DL250 BRAKE REAR AXLE (5001~5184), DL250-5 DIFFERENTIAL CARRIER,FRONT AXLE DL250-5 AXLE CASING FRONT AXLE, DL250-5 FRONT AXLE, DL250-5 BRAKE FRONT AXLE, DL250-5 DIFFERENTIAL CARRIER REAR AXLE, DL250-5 AXLE CASING REAR AXLE, DL250-5 REAR AXLE, DL250-5 BRAKE REAR AXLE, DL250-5 AXLE PIPING REAR AXLE, DL250-5K DIFFERENTIAL CARRIER FRONT AXLE, DL250-5K AXLE CASING FRONT AXLE, DL250-5K FRONT AXLE, DL250-5K BRAKE FRONT AXLE, DL250-5K DIFFERENTIAL CARRIER REAR AXLE, DL250-5K AXLE CASING REAR AXLE, DL250-5K REAR AXLE, DL250-5K BRAKE REAR AXLE,DL250-5K AXLE PIPING REAR AXLE
Hydraulic Korea Co.Ltd. is striving to give you the utmost satisfaction by providing top quality products in reasonable prices by both eliminating mid-distribution structure and founding direct partnership with foreign & domestic buyers all over the world.

 We will develop the deepest trust by fulfilling our duties rapidly and accurately and purchasing the right product based on know-hows built on our long-experiences.

 Products we handle:

 - Eaton Jeil & Doosan Mottrol track travel motor assy   Final drives
- Jeil hydraulic, Jeil PMC, Kawasaki pump assy, Tong Myung hydraulic parts,
- Cargo crane, joy stick assy, pedal valve
- Genuine products of Hyundai Heavy Machinery, Volvo Heavy Machinery and Doosan Heavy Machinery
- Every parts of construction & industrial machinery
Your inquires and questions will be handled preciously & immediately by our competent staff.
Hydraulic Korea Co.Ltd. will be your credible partner for your successful business.

 Thank you very much.
DL250 DIFFERENTIAL - FRONT AXLE 5001~10184
K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265
DL250 DIFFERENTIAL - FRONT AXLE 5001~1018


Ref. No.: 20
Parts No: 211-00167B
Description:  AXLE;FRONT
Qty: 1


Ref. No.: 100
Parts No: K9000628
Description:  BEARING;ROLLER
Qty: 1


Ref. No.: 132
Parts No: K9000308
Description:  WASHER S=0.7
Qty: 1


Ref. No.: 132
Parts No: K9000309
Description:  WASHER S=0.8
Qty: 1


Ref. No.: 132
Parts No: K9000310
Description:  WASHER S=0.9
Qty: 1


Ref. No.: 132
Parts No: K9000311
Description:  WASHER S=1.0
Qty: 1


Ref. No.: 132
Parts No: K9000312
Description:  WASHER S=1.1
Qty: 1


Ref. No.: 132
Parts No: K9000313
Description:  WASHER S=1.2
Qty: 1


Ref. No.: 132
Parts No: K9000314
Description:  WASHER S=1.3
Qty: 1


Ref. No.: 132
Parts No: K9000315
Description:  WASHER S=1.4
Qty: 1


Ref. No.: 132
Parts No: K9000316
Description:  WASHER S=1.5
Qty: 1


Ref. No.: 132
Parts No: K9000629
Description:  WASHER S=0.2
Qty: 1


Ref. No.: 132
Parts No: K9000630
Description:  WASHER S=0.1
Qty: 1


Ref. No.: 134
Parts No: K9000631
Description:  WASHER;SPACING S=8.8
Qty: 1


Ref. No.: 134
Parts No: K9000632
Description:  WASHER;SPACING S=8.7
Qty: 1


Ref. No.: 134
Parts No: K9000633
Description:  WASHER;SPACING S=8.6
Qty: 1


Ref. No.: 134
Parts No: K9000634
Description:  WASHER;SPACING S=8.5
Qty: 1


Ref. No.: 134
Parts No: K9000635
Description:  WASHER;SPACING S=8.4
Qty: 1


Ref. No.: 134
Parts No: K9000636
Description:  WASHER;SPACING S=8.3
Qty: 1


Ref. No.: 134
Parts No: K9000637
Description:  WASHER;SPACING S=8.9
Qty: 1


Ref. No.: 134
Parts No: K9000638
Description:  WASHER;SPACING S=9.1
Qty: 1


Ref. No.: 134
Parts No: K9000639
Description:  WASHER;SPACING S=9.2
Qty: 1


Ref. No.: 134
Parts No: K9000640
Description:  WASHER;SPACING S=9.3
Qty: 1


Ref. No.: 134
Parts No: K9000641
Description:  WASHER;SPACING S=9.4
Qty: 1


Ref. No.: 140
Parts No: K9000642
Description:  BEARING;ROLLER
Qty: 2


Ref. No.: 154
Parts No: K9000643
Description:  BEARING;ROLLER
Qty: 1


Ref. No.: 220
Parts No: K9000644
Description:  NUT;ADJUSTING
Qty: 2


Ref. No.: 280
Parts No: K9000645
Description:  SEAL;SHAFT
Qty: 1


Ref. No.: 300
Parts No: K9000646
Description:  WASHER
Qty: 1


Ref. No.: 338
Parts No: K9000647
Description:  NUT;HEX.
Qty: 1


Ref. No.: 340
Parts No: 2.123-00199
Description:  PIN;SLOT
Qty: 2


Ref. No.: 420
Parts No: K9000708
Description:  FLANGE;INPUT
Qty: 1


Ref. No.: 428
Parts No: K9000649
Description:  PROTECTION;DUST
Qty: 1


Ref. No.: 500
Parts No: K9000710
Description:  SET;BEVEL GEAR
Qty: 1


Ref. No.: 550
Parts No: K9000652
Description:  DIFFERENTIAL;LIMIT SLIP
Qty: 1


Ref. No.: 550A
Parts No: K9000653
Description: . SCREW;LOCKING
Qty: 12


Ref. No.: 550B
Parts No: K9002704
Description: . DISC;O.CLUTCH S=2.9
Qty: 4


Ref. No.: 550B
Parts No: K9002705
Description: . DISC;O.CLUTCH S=3.0
Qty: 4


Ref. No.: 550B
Parts No: K9002706
Description: . DISC;O.CLUTCH S=3.1
Qty: 4


Ref. No.: 550C
Parts No: K9000657
Description: . WASHER;THRUST
Qty: 2


Ref. No.: 550D
Parts No: K9000658
Description: . SHIM;END
Qty: 2


Ref. No.: 550E
Parts No: K9000659
Description: . HOUSING;DIFFERENTIAL
Qty: 1


Ref. No.: 550F
Parts No: K9000660
Description: . COVER;HOUSING
Qty: 1


Ref. No.: 550G
Parts No: K9000661
Description: . AXLE;DIFFERENTIAL
Qty: 2


Ref. No.: 550H
Parts No: K9000662
Description: . RING;PRESSURE
Qty: 2


Ref. No.: 550I
Parts No: K9000663
Description: . PINION;BEVEL
Qty: 4


Ref. No.: 550J
Parts No: K9000664
Description: . GEAR;AXLE BEVEL
Qty: 2


Ref. No.: 550K
Parts No: K9000665
Description: . DISC;I.CLUTCH
Qty: 4

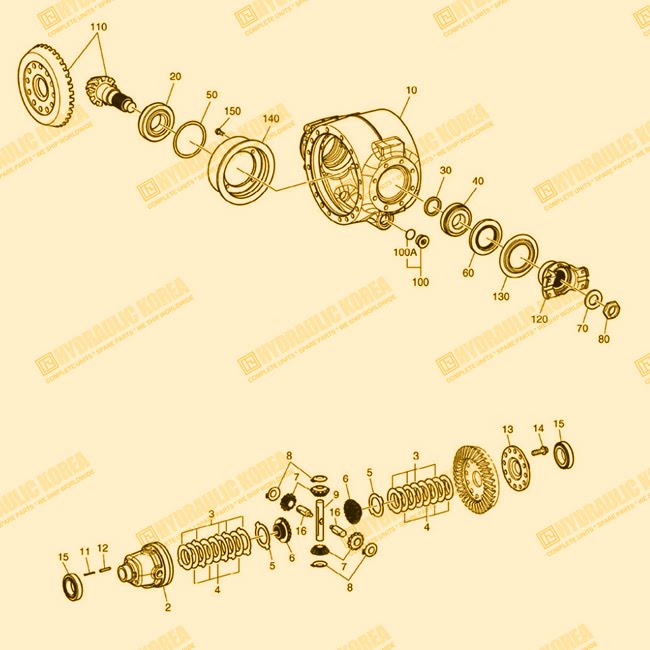

DL250 DIFFERENTIAL - FRONT AXLE 10185~
110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268 K9000270 130107-00028 K9000258 401003-00337 K9000260 K9000326 K9000259 110514-00067 K9000251 140107-00307
DL250 DIFFERENTIAL - FRONT AXLE 10185~
Ref. No.: 10
Parts No: 110931-00756
Description:  HOUSING,DIFFERENTIAL
Qty: 1


Ref. No.: 20
Parts No: 140107-00006
Description:  BEARING,TAPER ROLLER
Qty: 1


Ref. No.: 30
Parts No: K9000205
Description:  RING;SPACER A=7.30
Qty: 1


Ref. No.: 30
Parts No: K9000206
Description:  RING;SPACER A=7.40
Qty: 1


Ref. No.: 30
Parts No: K9000207
Description:  RING;SPACER A=7.50
Qty: 1


Ref. No.: 30
Parts No: K9000208
Description:  RING;SPACER A=7.60
Qty: 1


Ref. No.: 30
Parts No: K9000209
Description:  RING;SPACER A=7.70
Qty: 1


Ref. No.: 30
Parts No: K9000210
Description:  RING;SPACER A=7.90
Qty: 1


Ref. No.: 30
Parts No: K9000211
Description:  RING;SPACER A=8.00
Qty: 1


Ref. No.: 30
Parts No: K9000212
Description:  RING;SPACER A=8.10
Qty: 1


Ref. No.: 30
Parts No: K9000213
Description:  RING;SPACER A=8.20
Qty: 1


Ref. No.: 30
Parts No: K9000214
Description:  RING;SPACER A=8.30
Qty: 1


Ref. No.: 30
Parts No: K9000215
Description:  RING;SPACER A=8.40
Qty: 1


Ref. No.: 30
Parts No: K9000216
Description:  RING;SPACER A=8.50
Qty: 1


Ref. No.: 30
Parts No: K9000217
Description:  RING;SPACER A=8.60
Qty: 1


Ref. No.: 30
Parts No: K9000218
Description:  RING;SPACER A=8.70
Qty: 1


Ref. No.: 30
Parts No: K9000219
Description:  RING;SPACER A=8.80
Qty: 1


Ref. No.: 30
Parts No: K9000220
Description:  RING;SPACER A=8.90
Qty: 1


Ref. No.: 30
Parts No: K9000221
Description:  RING;SPACER A=9.00
Qty: 1


Ref. No.: 30
Parts No: K9000222
Description:  RING;SPACER A=7.80
Qty: 1


Ref. No.: 30
Parts No: K9000223
Description:  RING;SPACER A=7.82
Qty: 1


Ref. No.: 30
Parts No: K9000224
Description:  RING;SPACER A=7.84
Qty: 1


Ref. No.: 30
Parts No: K9000225
Description:  RING;SPACER A=7.86
Qty: 1


Ref. No.: 30
Parts No: K9000226
Description:  RING;SPACER A=7.88
Qty: 1


Ref. No.: 30
Parts No: K9000227
Description:  RING;SPACER A=7.92
Qty: 1


Ref. No.: 30
Parts No: K9000228
Description:  RING;SPACER A=7.94
Qty: 1


Ref. No.: 30
Parts No: K9000229
Description:  RING;SPACER A=7.96
Qty: 1


Ref. No.: 30
Parts No: K9000230
Description:  RING;SPACER A=7.98
Qty: 1


Ref. No.: 30
Parts No: K9000231
Description:  RING;SPACER A=8.02
Qty: 1


Ref. No.: 30
Parts No: K9000232
Description:  RING;SPACER A=8.04
Qty: 1


Ref. No.: 30
Parts No: K9000233
Description:  RING;SPACER A=8.06
Qty: 1


Ref. No.: 30
Parts No: K9000234
Description:  RING;SPACER A=8.08
Qty: 1


Ref. No.: 30
Parts No: K9000235
Description:  RING;SPACER A=8.12
Qty: 1


Ref. No.: 30
Parts No: K9000236
Description:  RING;SPACER A=8.14
Qty: 1


Ref. No.: 30
Parts No: K9000237
Description:  RING;SPACER A=8.16
Qty: 1


Ref. No.: 30
Parts No: K9000238
Description:  RING;SPACER A=8.18
Qty: 1


Ref. No.: 40
Parts No: 140107-00008
Description:  BEARING,ROLLER
Qty: 1


Ref. No.: 50
Parts No: K9000308
Description:  WASHER S=0.7
Qty: 1


Ref. No.: 50
Parts No: K9000309
Description:  WASHER S=0.8
Qty: 1


Ref. No.: 50
Parts No: K9000310
Description:  WASHER S=0.9
Qty: 1


Ref. No.: 50
Parts No: K9000311
Description:  WASHER S=1.0
Qty: 1


Ref. No.: 50
Parts No: K9000312
Description:  WASHER S=1.1
Qty: 1


Ref. No.: 50
Parts No: K9000313
Description:  WASHER S=1.2
Qty: 1


Ref. No.: 50
Parts No: K9000314
Description:  WASHER S=1.3
Qty: 1


Ref. No.: 50
Parts No: K9000315
Description:  WASHER S=1.4
Qty: 1


Ref. No.: 50
Parts No: K9000316
Description:  WASHER S=1.5
Qty: 1


Ref. No.: 50
Parts No: K9000629
Description:  WASHER S=0.2
Qty: 1


Ref. No.: 50
Parts No: K9000630
Description:  WASHER S=0.1
Qty: 1


Ref. No.: 60
Parts No: K9000245
Description:  SEAL;SHAFT
Qty: 1


Ref. No.: 70
Parts No: K9000204
Description:  WASHER A=5.00
Qty: 1


Ref. No.: 80
Parts No: K9000250
Description:  NUT;SLOTTED
Qty: 1


Ref. No.: 100
Parts No: 120705-00003
Description:  SCREW,PLUG
Qty: 3


Ref. No.: 100A
Parts No: 1.180-00135
Description: . O-RING
Qty: 1


Ref. No.: 110
Parts No: 130407-00043
Description:  GEAR SET,BEVEL
Qty: 1


Ref. No.: 120
Parts No: 430215-00604
Description:  FLANGE;INPUT
Qty: 1


Ref. No.: 130
Parts No: 160503-00011
Description:  PROTECTION
Qty: 1


Ref. No.: 1
Parts No: 110931-00748
Description:  HOUSING,DIFFERENTIAL
Qty: 1


Ref. No.: 2
Parts No: K9000262
Description:  WASHER;THRUST
Qty: 2


Ref. No.: 3
Parts No: K9000261
Description:  WASHER;THRUST
Qty: 2


Ref. No.: 4
Parts No: K9000266
Description:  DISC;O.CLUTCH S=3.00
Qty: 4


Ref. No.: 4
Parts No: K9000265
Description:  DISC;O.CLUTCH S=2.70
Qty: 4


Ref. No.: 4
Parts No: K9000267
Description:  DISC;O.CLUTCH S=2.90
Qty: 4


Ref. No.: 4
Parts No: K9000264
Description:  DISC;O.CLUTCH S=3.10
Qty: 4


Ref. No.: 4
Parts No: K9000268
Description:  DISC;O.CLUTCH S=3.20
Qty: 4


Ref. No.: 4
Parts No: K9000270
Description:  DISC;O.CLUTCH S=3.30
Qty: 4


Ref. No.: 4
Parts No: 130107-00028
Description:  DISC,CLUTCH;OUTER S=3.5
Qty: 4


Ref. No.: 5
Parts No: K9000258
Description:  DISC;I.CLUTCH
Qty: 4


Ref. No.: 6
Parts No: 401003-00337
Description:  RING,PRESSURE
Qty: 2


Ref. No.: 7
Parts No: K9000260
Description:  AXLE;DIFFERENTIAL
Qty: 2


Ref. No.: 8
Parts No: K9000326
Description:  GEAR;AXLE BEVEL
Qty: 2


Ref. No.: 9
Parts No: K9000259
Description:  GEAR;BEVEL
Qty: 4


Ref. No.: 11
Parts No: 110514-00067
Description:  COVER,HOUSING
Qty: 1


Ref. No.: 13
Parts No: K9000251
Description:  SCREW;LOCKING
Qty: 20


Ref. No.: 14
Parts No: 140107-00307
Description:  BEARING,TAPER ROLLER
Qty: 2

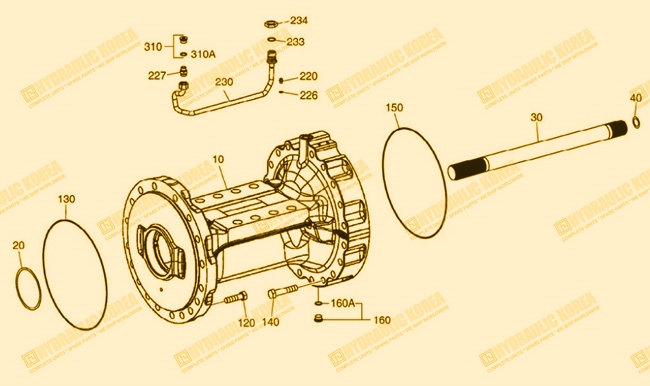

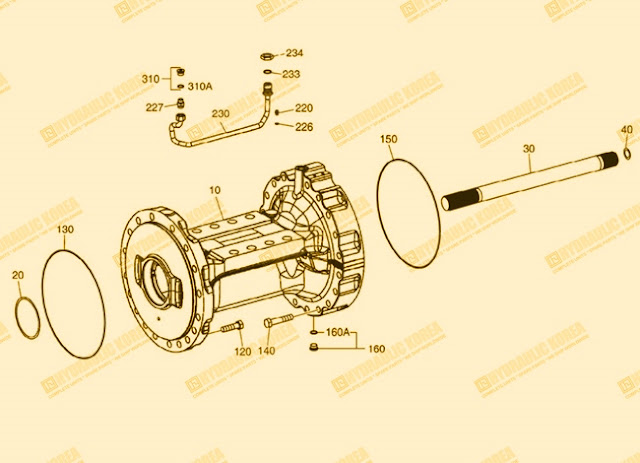

DL250 AXLE CASING - FRONT AXLE 5001~10184
K9000666 K9000667 2.114-00867 1.120-00158 K9001478 1.180-00135 K9000317 2.181-00495 1.180-00137 K9000165 1.180-00137 K9000239 K9000294 2.180-00277 K9000178 1.420-00157 1.120-00169 K9000180 K9000711 K9000300 2.180-00345 K9000177 K9000291 K9000713 K9000714 K9000186 K9000187 K9000188 K9000197 K9000198
DL250 AXLE CASING - FRONT AXLE 5001~10184
Ref. No.: 10
Parts No: K9000666
Description:  SCREW;HEX.
Qty: 32


Ref. No.: 20
Parts No: K9000667
Description:  SCREW;HEX.
Qty: 8


Ref. No.: 30
Parts No: 2.114-00867
Description:  WASHER
Qty: 40


Ref. No.: 40
Parts No: 1.120-00158
Description:  SCREW;LOCKING
Qty: 18


Ref. No.: 50
Parts No: K9001478
Description:  PLUG;SCREW
Qty: 2


Ref. No.: 60
Parts No: 1.180-00135
Description:  O-RING
Qty: 2


Ref. No.: 80
Parts No: K9000317
Description:  PLUG;SCREW
Qty: 1


Ref. No.: 80A
Parts No: 2.181-00495
Description: . PLUG
Qty: 1


Ref. No.: 80B
Parts No: 1.180-00137
Description: . O-RING
Qty: 1


Ref. No.: 85
Parts No: K9000165
Description:  PLUG;SCREW
Qty: 3


Ref. No.: 86
Parts No: 1.180-00137
Description:  O-RING
Qty: 3


Ref. No.: 100
Parts No: K9000239
Description:  VALVE;VENT
Qty: 1


Ref. No.: 131
Parts No: K9000294
Description:  PART;CONNECTION
Qty: 2


Ref. No.: 132
Parts No: 2.180-00277
Description:  O-RING
Qty: 2


Ref. No.: 133
Parts No: K9000178
Description:  RING;PISTON
Qty: 2


Ref. No.: 160
Parts No: 1.420-00157
Description:  VALVE;VENT
Qty: 2


Ref. No.: 170
Parts No: 1.120-00169
Description:  PLUG;SCREW
Qty: 2


Ref. No.: 175
Parts No: K9000180
Description:  RING;SEALING
Qty: 2


Ref. No.: 180
Parts No: K9000711
Description:  TUBE;BRAKE
Qty: 2


Ref. No.: 190
Parts No: K9000300
Description:  SCREW;UNION
Qty: 2


Ref. No.: 191
Parts No: 2.180-00345
Description:  O-RING
Qty: 2


Ref. No.: 210
Parts No: K9000177
Description:  O-RING
Qty: 2


Ref. No.: 230
Parts No: K9000291
Description:  NUT;HEX.
Qty: 2


Ref. No.: 610
Parts No: K9000713
Description:  CASING;AXLE
Qty: 1


Ref. No.: 620
Parts No: K9000714
Description:  SHAFT;STUB
Qty: 2


Ref. No.: 650
Parts No: K9000186
Description:  SHIM S=0.60
Qty: 2


Ref. No.: 650
Parts No: K9000187
Description:  SHIM S=1.00
Qty: 2


Ref. No.: 650
Parts No: K9000188
Description:  SHIM S=1.60
Qty: 2


Ref. No.: 650
Parts No: K9000197
Description:  SHIM A=2.00
Qty: 2


Ref. No.: 650
Parts No: K9000198
Description:  SHIM A=2.50
Qty: 2

DL250 AXLE CASING - FRONT AXLE 10185~
190113-00054 110947-00220 110947-00221 110947-00222 130712-00930 K9000186 K9000187 K9000188 K9000197 K9000198 120705-00669 401002-00732 K9002851 K9000176 120705-00002 1.180-00137 1.120-00180 K9000333 120705-00673 420406-00928 K9000177 K9000291 430221-00558 2.180-00346
DL250 AXLE CASING - FRONT AXLE 10185~
Ref. No.: 10
Parts No: 190113-00054
Description:  HOUSING,AXLE
Qty: 2
Ref. No.: 20
Parts No: 110947-00220
Description:  SHIM S=0.8
Qty: 2
Ref. No.: 20
Parts No: 110947-00221
Description:  SHIM S=0.9
Qty: 2
Ref. No.: 20
Parts No: 110947-00222
Description:  SHIM S=1.0
Qty: 2
Ref. No.: 30
Parts No: 130712-00930
Description:  SHAFT,STUB
Qty: 2
Ref. No.: 40
Parts No: K9000186
Description:  SHIM S=0.60
Qty: 1
Ref. No.: 40
Parts No: K9000187
Description:  SHIM S=1.00
Qty: 1
Ref. No.: 40
Parts No: K9000188
Description:  SHIM S=1.60
Qty: 1
Ref. No.: 40
Parts No: K9000197
Description:  SHIM A=2.00
Qty: 1
Ref. No.: 40
Parts No: K9000198
Description:  SHIM A=2.50
Qty: 1
Ref. No.: 120
Parts No: 120705-00669
Description:  SCREW,HEX
Qty: 36
Ref. No.: 130
Parts No: 401002-00732
Description:  RING,O
Qty: 2
Ref. No.: 140
Parts No: K9002851
Description:  SCREW
Qty: 38
Ref. No.: 150
Parts No: K9000176
Description:  O-RING
Qty: 2
Ref. No.: 160
Parts No: 120705-00002
Description:  SCREW,PLUG
Qty: 2
Ref. No.: 160A
Parts No: 1.180-00137
Description: . O-RING
Qty: 2
Ref. No.: 220
Parts No: 1.120-00180
Description:  PLUG;SCREW
Qty: 1
Ref. No.: 226
Parts No: K9000333
Description:  RING;SEALING
Qty: 1
Ref. No.: 227
Parts No: 120705-00673
Description:  SCREW
Qty: 2
Ref. No.: 230
Parts No: 420406-00928
Description:  TUBE,BRAKE
Qty: 2
Ref. No.: 233
Parts No: K9000177
Description:  O-RING
Qty: 2
Ref. No.: 234
Parts No: K9000291
Description:  NUT;HEX.
Qty: 2
Ref. No.: 310
Parts No: 430221-00558
Description:  PLUG,SCREW
Qty: 2
Ref. No.: 310A
Parts No: 2.180-00346
Description: . O-RING
Qty: 1


 DL250 PLANETARY GEAR - FRONT AXLE 5001~10184
K9002961 K9000032 K9000179 K9000334 K9000176 K9000240 K9000249 K9000672 K9002962 K9000674 K9000173 K9000286 2.180-00284 K9000337 K9000336 130418-00002 K9000675 100502-00206 K9000277 K9000321 K9000322 140107-00007 K9000171 401003-00005 K9000164 1.180-00137 K9002864
[DL250] PLANETARY GEAR - FRONT AXLE [5001~10184]

Ref. No.: 10
Parts No: K9002961
Description:  HOUSING;BRAKE
Qty: 2
Ref. No.: 20
Parts No: K9000032
Description:  PLUG
Qty: 2
Ref. No.: 30
Parts No: K9000179
Description:  O-RING
Qty: 4
Ref. No.: 40
Parts No: K9000334
Description:  GEAR;RING
Qty: 2
Ref. No.: 50
Parts No: K9000176
Description:  O-RING
Qty: 4
Ref. No.: 60
Parts No: K9000240
Description:  RING;MULTI SEAL
Qty: 2
Ref. No.: 70
Parts No: K9000249
Description:  BEARING;TAPER ROLLER
Qty: 2
Ref. No.: 80
Parts No: K9000672
Description:  BEARING;TAPPER ROLLER
Qty: 2
Ref. No.: 90
Parts No: K9002962
Description:  SHAFT;OUTPUT
Qty: 2
Ref. No.: 100
Parts No: K9000674
Description:  NUT;SLOTTED
Qty: 2
Ref. No.: 110
Parts No: K9000173
Description:  PIN;SLOT
Qty: 2
Ref. No.: 120
Parts No: K9000286
Description:  COVER
Qty: 2
Ref. No.: 130
Parts No: 2.180-00284
Description:  O-RING
Qty: 2
Ref. No.: 150
Parts No: K9000337
Description:  SHAFT;SUN GEAR
Qty: 2
Ref. No.: 160
Parts No: K9000336
Description:  GEAR;PLANET
Qty: 6
Serial:  ~ 1385459
Ref. No.: 160
Parts No: 130418-00002
Description:  GEAR;PLANET
Qty: 6
Serial:  1385460 ~
Ref. No.: 180
Parts No: K9000675
Description:  CARRIER;PLANET
Qty: 2
Serial:  ~ 1385459
Ref. No.: 180
Parts No: 100502-00206
Description:  CARRIER;PLANET
Qty: 2
Serial:  1385460 ~
Ref. No.: 210
Parts No: K9000277
Description:  BOLT;STOP
Qty: 2
Ref. No.: 250
Parts No: K9000321
Description:  BEARING,TAPER ROLLER
Qty: 6
Serial:  ~ 1385459
Ref. No.: 252
Parts No: K9000322
Description:  BEARING,TAPER ROLLER
Qty: 6
Serial:  ~ 1385459
Ref. No.: 252
Parts No: 140107-00007
Description:  BEARING,ROLLER
Qty: 6
Serial:  1385460 ~
Ref. No.: 270
Parts No: K9000171
Description:  RING;RETAINING
Qty: 6
Serial:  ~ 1385459
Ref. No.: 270
Parts No: 401003-00005
Description:  RING,RETAINING
Qty: 6
Serial:  1385460 ~
Ref. No.: 281
Parts No: K9000164
Description:  PLUG;SCREW
Qty: 2
Ref. No.: 282
Parts No: 1.180-00137
Description:  O-RING
Qty: 2
Ref. No.: 400
Parts No: K9002864
Description:  BOLT;WHEEL
Qty: 24

DL250 PLANETARY GEAR - FRONT AXLE 10185~
110931-00757 1.420-00157 401107-00009 K9000324 140107-00289 130712-00931 130712-01897 120112-00778 110508-08588 120705-00672 K9000286 2.180-00284 130712-00811 130418-00002 130413-00032 120112-00895 401003-00005 120705-00002 1.180-00137 K9000179
DL250 PLANETARY GEAR - FRONT AXLE 10185~

Ref. No.: 10
Parts No: 110931-00757
Description:  HOUSING,BRAKE
Qty: 1
Ref. No.: 30
Parts No: 1.420-00157
Description:  VALVE;VENT
Qty: 1
Ref. No.: 40
Parts No: 401107-00009
Description:  SEAL
Qty: 1
Ref. No.: 60
Parts No: K9000324
Description:  BEARING;TAPER ROLLER
Qty: 1
Ref. No.: 70
Parts No: 140107-00289
Description:  BEARING,TAPER ROLLER
Qty: 1
Ref. No.: 80
Parts No: 130712-00931
Description:  SHAFT;OUTPUT
Qty: 1
Serial:  ~ 3191234
ICA: I
Ref. No.: 80
Parts No: 130712-01897
Description:  SHAFT;OUTPUT
Qty: 1
Serial:  3191235 ~
Ref. No.: 85
Parts No: 120112-00778
Description:  BOLT,WHEEL
Qty: 12
Ref. No.: 100
Parts No: 110508-08588
Description:  COVER
Qty: 1
Ref. No.: 110
Parts No: 120705-00672
Description:  SCREW,LOCKING
Qty: 6
Ref. No.: 120
Parts No: K9000286
Description:  COVER
Qty: 1
Ref. No.: 130
Parts No: 2.180-00284
Description:  O-RING
Qty: 1
Ref. No.: 140
Parts No: 130712-00811
Description:  SHAFT,SUN GEAR
Qty: 1
Ref. No.: 152
Parts No: 130418-00002
Description:  GEAR;PLANET
Qty: 4
Ref. No.: 160
Parts No: 130413-00032
Description:  GEAR,PLANETARY
Qty: 1
Ref. No.: 180
Parts No: 120112-00895
Description:  BOLT,STOP
Qty: 1
Ref. No.: 200
Parts No: 401003-00005
Description:  RING,RETAINING
Qty: 4
Ref. No.: 210
Parts No: 120705-00002
Description:  SCREW,PLUG
Qty: 1
Ref. No.: 210A
Parts No: 1.180-00137
Description: . O-RING
Qty: 1
Ref. No.: 220
Parts No: K9000179
Description:  O-RING
Qty: 1

DL250 BRAKE - FRONT AXLE 5001~10184
K9000716 K9000243 K9000241 K9000244 K9000242 K9000168 K9002702 K9000287 K9000327 K9000717 K9000172 K9000175 K9000289 K9000169 K9000170 K9000031 401107-02121
DL250 BRAKE - FRONT AXLE 5001~10184
Ref. No.: 10
Parts No: K9000716
Description:  PISTON
Qty: 2
Ref. No.: 20
Parts No: K9000243
Description:  U-RING
Qty: 2
Ref. No.: 30
Parts No: K9000241
Description:  RING;SUPPORT
Qty: 2
Ref. No.: 50
Parts No: K9000244
Description:  U-RING
Qty: 2
Ref. No.: 60
Parts No: K9000242
Description:  RING;SUPPORT
Qty: 2
Ref. No.: 70
Parts No: K9000168
Description:  RING;GUIDE
Qty: 2
Ref. No.: 100
Parts No: K9002702
Description:  DISC;I.CLUTCH S=4.7
Qty: 8
Ref. No.: 110
Parts No: K9000287
Description:  DISC;O.CLUTCH
Qty: 6
Ref. No.: 112
Parts No: K9000327
Description:  DISC;O.CLUTCH A=2.0
Qty: 4
Ref. No.: 120
Parts No: K9000717
Description:  PIN
Qty: 12
Ref. No.: 130
Parts No: K9000172
Description:  RING;GRIPPING
Qty: 48
Ref. No.: 140
Parts No: K9000175
Description:  SPRING;CUP
Qty: 84
Ref. No.: 150
Parts No: K9000289
Description:  SHIM;SUPPORT
Qty: 2
Ref. No.: 160
Parts No: K9000169
Description:  RING;SNAP
Qty: 12
Ref. No.: 170
Parts No: K9000170
Description:  RING;SNAP
Qty: 2
Ref. No.: 180
Parts No: K9000031
Description:  PIN;SLOT
Qty: 12
Ref. No.: *
Parts No: 401107-02121
Description:  SEAL KIT,FRONT AXLE(BRAKE)
Qty: 1

DL250 BRAKE - FRONT AXLE 10185~
140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268 K9000270 130107-00028 K9000258 401003-00336 K9000260 K9000326 K9000259 110514-00067 K9000251 140107-00307 190113-00054 110947-00220 110947-00221 110947-00222 130712-00930 K9000186 K9000187 K9000188 K9000197 K9000198 120705-00669 401002-00732 K9002851 K9000176 120705-00002 1.180-00137 1.120-00180 K9000333 120705-00673 420406-00928 K9000177 K9000291 430221-00558 2.180-00346 110931-00757 1.420-00157 401107-00009 K9000324 140107-00289 130712-01897 120112-00778 110508-08588 120705-00672 K9000286 2.180-00284 130712-00811 130418-00002 130413-00032 120112-00895 401003-00005 120705-00002 1.180-00137 K9000179 130602-00889 K9000243 K9000241 K9000244 K9000242 K9000168 110947-00205 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407
DL250 BRAKE - FRONT AXLE 10185~

Ref. No.: 10
Parts No: 130602-00889
Description:  PISTON
Qty: 2


Ref. No.: 20
Parts No: K9000243
Description:  U-RING
Qty: 2


Ref. No.: 30
Parts No: K9000241
Description:  RING;SUPPORT
Qty: 2


Ref. No.: 40
Parts No: K9000244
Description:  U-RING
Qty: 2


Ref. No.: 50
Parts No: K9000242
Description:  RING;SUPPORT
Qty: 2


Ref. No.: 60
Parts No: K9000168
Description:  RING;GUIDE
Qty: 2


Ref. No.: 70
Parts No: 110947-00205
Description:  SHIM;END
Qty: 2


Ref. No.: 90
Parts No: K9002702
Description:  DISC;I.CLUTCH S=4.7
Qty: 8


Ref. No.: 100
Parts No: K9000287
Description:  DISC;O.CLUTCH
Qty: 8


Ref. No.: 110
Parts No: K9000327
Description:  DISC;O.CLUTCH A=2.0
Qty: 4


Ref. No.: 120
Parts No: K9006018
Description:  PIN
Qty: 12


Ref. No.: 130
Parts No: 120808-00531
Description:  WASHER
Qty: 2


Ref. No.: 140
Parts No: 111601-00407
Description:  SPRING,CUP
Qty: 2


Ref. No.: 150
Parts No: 110508-10725
Description:  COVER
Qty: 2


Ref. No.: 160
Parts No: 120705-00671
Description:  SCREW,HEX
Qty: 12


Ref. No.: *
Parts No: 401107-02121
Description:  SEAL KIT,FRONT AXLE(BRAKE)
Qty: 1



DL250 DIFFERENTIAL - REAR AXLE 5001~5184
190105-00011 K9006020 K9006021 K9006065 K9000251 1.109-00073 190105-00012 K9006044 K9006028 K9006029 K9006030 K9006031 K9006032 130712-00920 K9000764 K9000765 K9000766 K9000767 1.120-00134 K9006022 K9000758 K9000176 120705-00821 1.180-00137 110931-00801 1.420-00157 401107-00009 140107-00289 K9006037 K9006055 K9002864 K9006054 120705-00672 K9000286 2.180-00284 K9006051 K9002965 130413-00033 120112-00895 K9000777 120705-00002 1.180-00137 130602-00889 K9006035 K9000241 K9006036 K9000242 K9000168 110947-00263 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407 110508-10725 K9006024 1.120-00180 K9000333 120705-00822 1.180-00124 K9006042 1.120-00093 120705-00823 K9002821 120705-00003 1.180-00135
DL250 DIFFERENTIAL - REAR AXLE 5001~5184
Ref. No.: 20
Parts No: K9000718
Description:  HOUSING;DIFFERENTIAL
Qty: 1


Ref. No.: 50
Parts No: K9000719
Description:  BEARING;ROLLER
Qty: 1


Ref. No.: 80
Parts No: K9000631
Description:  WASHER;SPACING S=8.8
Qty: 1


Ref. No.: 80
Parts No: K9000632
Description:  WASHER;SPACING S=8.7
Qty: 1


Ref. No.: 80
Parts No: K9000633
Description:  WASHER;SPACING S=8.6
Qty: 1


Ref. No.: 80
Parts No: K9000634
Description:  WASHER;SPACING S=8.5
Qty: 1


Ref. No.: 80
Parts No: K9000635
Description:  WASHER;SPACING S=8.4
Qty: 1


Ref. No.: 80
Parts No: K9000636
Description:  WASHER;SPACING S=8.3
Qty: 1


Ref. No.: 80
Parts No: K9000637
Description:  WASHER;SPACING S=8.9
Qty: 1


Ref. No.: 80
Parts No: K9000638
Description:  WASHER;SPACING S=9.1
Qty: 1


Ref. No.: 80
Parts No: K9000639
Description:  WASHER;SPACING S=9.2
Qty: 1


Ref. No.: 80
Parts No: K9000640
Description:  WASHER;SPACING S=9.3
Qty: 1


Ref. No.: 80
Parts No: K9000641
Description:  WASHER;SPACING S=9.4
Qty: 1


Ref. No.: 100
Parts No: 1.109-00091
Description:  BEARING;ROLLER
Qty: 1


Ref. No.: 130
Parts No: K9000720
Description:  WASHER S=0.7
Qty: 1


Ref. No.: 130
Parts No: K9000721
Description:  WASHER S=0.8
Qty: 1


Ref. No.: 130
Parts No: K9000722
Description:  WASHER S=0.9
Qty: 1


Ref. No.: 130
Parts No: K9000723
Description:  WASHER S=1.0
Qty: 1


Ref. No.: 130
Parts No: K9000724
Description:  WASHER S=1.2
Qty: 1


Ref. No.: 130
Parts No: K9000725
Description:  WASHER S=1.3
Qty: 1


Ref. No.: 130
Parts No: K9000726
Description:  WASHER S=1.4
Qty: 1


Ref. No.: 130
Parts No: K9000727
Description:  WASHER S=1.5
Qty: 1


Ref. No.: 130
Parts No: K9000728
Description:  WASHER S=1.6
Qty: 1


Ref. No.: 130
Parts No: K9000729
Description:  WASHER S=1.7
Qty: 1


Ref. No.: 130
Parts No: K9000730
Description:  WASHER S=1.8
Qty: 1


Ref. No.: 130
Parts No: K9000731
Description:  WASHER S=1.9
Qty: 1


Ref. No.: 130
Parts No: K9000732
Description:  WASHER S=2.0
Qty: 1


Ref. No.: 130
Parts No: K9000733
Description:  WASHER S=1.1
Qty: 1


Ref. No.: 170
Parts No: 1.109-00073
Description:  BEARING;TAPPER ROLLER
Qty: 1


Ref. No.: 200
Parts No: K9000734
Description:  BEARING;ROLLER
Qty: 1


Ref. No.: 220
Parts No: K9000735
Description:  NUT;ADJUSTING
Qty: 2


Ref. No.: 230
Parts No: 2.123-00199
Description:  PIN;SLOT
Qty: 2


Ref. No.: 280
Parts No: K9000645
Description:  SEAL;SHAFT
Qty: 1


Ref. No.: 300
Parts No: K9000646
Description:  WASHER
Qty: 1


Ref. No.: 320
Parts No: K9000647
Description:  NUT;HEX.
Qty: 1


Ref. No.: 330
Parts No: K9000736
Description:  FLANGE;BEARING
Qty: 1


Ref. No.: 340
Parts No: K9000737
Description:  BUSH
Qty: 1


Ref. No.: 350
Parts No: 1.120-00121
Description:  SCREW;HEX.
Qty: 8


Ref. No.: 420
Parts No: K9000708
Description:  FLANGE;INPUT
Qty: 1


Ref. No.: 428
Parts No: K9000649
Description:  PROTECTION;DUST
Qty: 1


Ref. No.: 500
Parts No: K9000738
Description:  SET;BEVEL GEAR
Qty: 1


Ref. No.: 550
Parts No: K9000739
Description:  DIFFERENTIAL;LIMIT SLIP
Qty: 1


Ref. No.: 550A
Parts No: K9000740
Description: . HOUSING;DIFFERENTIAL
Qty: 1


Ref. No.: 550B
Parts No: K9000741
Description: . CAP;SEALING
Qty: 6


Ref. No.: 550C
Parts No: K9000742
Description: . RING;SNAP
Qty: 1


Ref. No.: 550D
Parts No: K9000743
Description: . WASHER;THRUST
Qty: 2


Ref. No.: 550E
Parts No: K9000744
Description: . WASHER;THRUST
Qty: 1


Ref. No.: 550F
Parts No: K9000745
Description: . DISC;O.CLUTCH A=2.2
Qty: 4


Ref. No.: 550F
Parts No: K9000746
Description: . DISC;O.CLUTCH A=2.3
Qty: 4


Ref. No.: 550F
Parts No: K9000747
Description: . DISC;O.CLUTCH A=2.4
Qty: 4


Ref. No.: 550F
Parts No: K9000748
Description: . DISC;O.CLUTCH A=2.5
Qty: 4


Ref. No.: 550F
Parts No: K9000749
Description: . DISC;O.CLUTCH A=2.1
Qty: 4


Ref. No.: 550G
Parts No: K9000750
Description: . DISC;I.CLUTCH
Qty: 4


Ref. No.: 550H
Parts No: K9000751
Description: . RING;PRESSURE
Qty: 2


Ref. No.: 550I
Parts No: K9000752
Description: . AXLE;DIFFERENTIAL
Qty: 2


Ref. No.: 550J
Parts No: K9000753
Description: . GEAR;AXLE BEVEL
Qty: 2


Ref. No.: 550K
Parts No: K9000754
Description: . GEAR;DIFF. BEVEL
Qty: 4


Ref. No.: 550L
Parts No: K9000755
Description: . PIN;DRIVING
Qty: 12


Ref. No.: 550M
Parts No: K9000756
Description: . COVER;HOUSING
Qty: 1


Ref. No.: 550N
Parts No: K9000757
Description: . SCREW;LOCKING
Qty: 12


DL250 AXLE CASING - REAR AXLE 5001~5184
K9000758 K9000759 2.114-00867 K9000615 K9000616 K9001889 K9001478 1.180-00135 K9000165 1.180-00137 K9000317 2.181-00495 1.180-00137 K9000165 K9000760 K9000239 K9000294 2.180-00277 K9000178 1.420-00157 1.120-00169 K9000180 K9000761 K9000300 2.180-00345 K9000177 K9000291 K9000762 K9000763 K9000764 K9000765 K9000766 K9000767
DL250 AXLE CASING - REAR AXLE 5001~5184
Ref. No.: 10
Parts No: K9000758
Description:  SCREW;HEX.
Qty: 28


Ref. No.: 20
Parts No: K9000759
Description:  SCREW;HEX.
Qty: 4


Ref. No.: 30
Parts No: 2.114-00867
Description:  WASHER
Qty: 32


Ref. No.: 34
Parts No: K9000615
Description:  PIN;SLOT
Qty: 2


Ref. No.: 36
Parts No: K9000616
Description:  PIN;SLOT
Qty: 2


Ref. No.: 40
Parts No: K9001889
Description:  SCREW;LOCKING
Qty: 12


Ref. No.: 51
Parts No: K9001478
Description:  PLUG;SCREW
Qty: 3


Ref. No.: 52
Parts No: 1.180-00135
Description:  O-RING
Qty: 3


Ref. No.: 71
Parts No: K9000165
Description:  PLUG;SCREW
Qty: 1


Ref. No.: 72
Parts No: 1.180-00137
Description:  O-RING
Qty: 1


Ref. No.: 80
Parts No: K9000317
Description:  PLUG;SCREW
Qty: 1


Ref. No.: 80A
Parts No: 2.181-00495
Description: . PLUG
Qty: 1


Ref. No.: 80B
Parts No: 1.180-00137
Description: . O-RING
Qty: 1


Ref. No.: 85
Parts No: K9000165
Description:  PLUG;SCREW
Qty: 2


Ref. No.: 95
Parts No: K9000760
Description:  RING;SEALING
Qty: 2


Ref. No.: 100
Parts No: K9000239
Description:  VALVE;VENT
Qty: 1


Ref. No.: 131
Parts No: K9000294
Description:  PART;CONNECTION
Qty: 2


Ref. No.: 132
Parts No: 2.180-00277
Description:  O-RING
Qty: 2


Ref. No.: 133
Parts No: K9000178
Description:  RING;PISTON
Qty: 2


Ref. No.: 160
Parts No: 1.420-00157
Description:  VALVE;VENT
Qty: 2


Ref. No.: 170
Parts No: 1.120-00169
Description:  PLUG;SCREW
Qty: 2


Ref. No.: 175
Parts No: K9000180
Description:  RING;SEALING
Qty: 2


Ref. No.: 180
Parts No: K9000761
Description:  TUBE;BRAKE
Qty: 2


Ref. No.: 191
Parts No: K9000300
Description:  SCREW;UNION
Qty: 2


Ref. No.: 192
Parts No: 2.180-00345
Description:  O-RING
Qty: 2


Ref. No.: 210
Parts No: K9000177
Description:  O-RING
Qty: 2


Ref. No.: 230
Parts No: K9000291
Description:  NUT;HEX.
Qty: 2


Ref. No.: 610
Parts No: K9000762
Description:  CASING;AXLE
Qty: 1


Ref. No.: 620
Parts No: K9000763
Description:  SHAFT;STUB
Qty: 2


Ref. No.: 650
Parts No: K9000764
Description:  WASHER S=0.2
Qty: 2


Ref. No.: 650
Parts No: K9000765
Description:  WASHER S=0.4
Qty: 2


Ref. No.: 650
Parts No: K9000766
Description:  WASHER S=1.0
Qty: 2


Ref. No.: 650
Parts No: K9000767
Description:  WASHER S=1.5
Qty: 2

DL250 PLANETARY GEAR - REAR AXLE 5001~5184
K9002963 K9000032 K9000179 K9000769 K9000176 K9000240 K9000323 K9000770 K9002964 K9000674 K9000173 K9000286 2.180-00284 K9000772 K9002965 K9002966 K9000277 K9002967 K9000777 K9000164 1.180-00137 K9002864
DL250 PLANETARY GEAR - REAR AXLE 5001~5184
Ref. No.: 10
Parts No: K9002963
Description:  HOUSING;BRAKE
Qty: 2
Ref. No.: 20
Parts No: K9000032
Description:  PLUG
Qty: 2
Ref. No.: 30
Parts No: K9000179
Description:  O-RING
Qty: 4
Ref. No.: 40
Parts No: K9000769
Description:  GEAR;RING
Qty: 2
Ref. No.: 50
Parts No: K9000176
Description:  O-RING
Qty: 4
Ref. No.: 60
Parts No: K9000240
Description:  RING;MULTI SEAL
Qty: 2
Ref. No.: 70
Parts No: K9000323
Description:  BEARING;TAPER ROLLER
Qty: 2
Ref. No.: 80
Parts No: K9000770
Description:  BEARING;TAPPER ROLLER
Qty: 2
Ref. No.: 90
Parts No: K9002964
Description:  SHAFT;OUTPUT
Qty: 2
Ref. No.: 100
Parts No: K9000674
Description:  NUT;SLOTTED
Qty: 2
Ref. No.: 110
Parts No: K9000173
Description:  PIN;SLOT
Qty: 2
Ref. No.: 120
Parts No: K9000286
Description:  COVER
Qty: 2
Ref. No.: 130
Parts No: 2.180-00284
Description:  O-RING
Qty: 2
Ref. No.: 150
Parts No: K9000772
Description:  SHAFT;SUN GEAR
Qty: 2
Ref. No.: 160
Parts No: K9002965
Description:  GEAR;PLANET
Qty: 8
Ref. No.: 180
Parts No: K9002966
Description:  CARRIER;PLANET
Qty: 2
Ref. No.: 210
Parts No: K9000277
Description:  BOLT;STOP
Qty: 2
Ref. No.: 250
Parts No: K9002967
Description:  BEARING;ROLLER
Qty: 8
Ref. No.: 270
Parts No: K9000777
Description:  RING;RETAINING
Qty: 8
Ref. No.: 281
Parts No: K9000164
Description:  PLUG;SCREW
Qty: 2
Ref. No.: 282
Parts No: 1.180-00137
Description:  O-RING
Qty: 2
Ref. No.: 400
Parts No: K9002864
Description:  BOLT;WHEEL

Qty: 24

DL250 BRAKE - REAR AXLE 5001~5184
K9000290 K9000243 K9000241 K9000244 K9000242 K9000168 K9002702 K9000287 K9000327 K9000717 K9000172 K9000175 K9000289 K9000169 K9000170 K9000031 401107-02121
[DL250] BRAKE - REAR AXLE [5001~5184]
Ref. No.: 10
Parts No: K9000290
Description:  PISTON
Qty: 2
Ref. No.: 20
Parts No: K9000243
Description:  U-RING
Qty: 2
Ref. No.: 30
Parts No: K9000241
Description:  RING;SUPPORT
Qty: 2
Ref. No.: 50
Parts No: K9000244
Description:  U-RING
Qty: 2
Ref. No.: 60
Parts No: K9000242
Description:  RING;SUPPORT
Qty: 2
Ref. No.: 70
Parts No: K9000168
Description:  RING;GUIDE
Qty: 2
Ref. No.: 100
Parts No: K9002702
Description:  DISC;I.CLUTCH S=4.7
Qty: 8
Ref. No.: 110
Parts No: K9000287
Description:  DISC;O.CLUTCH
Qty: 6
Ref. No.: 112
Parts No: K9000327
Description:  DISC;O.CLUTCH A=2.0
Qty: 4
Ref. No.: 120
Parts No: K9000717
Description:  PIN
Qty: 12
Ref. No.: 130
Parts No: K9000172
Description:  RING;GRIPPING
Qty: 48
Ref. No.: 140
Parts No: K9000175
Description:  SPRING;CUP
Qty: 84
Ref. No.: 150
Parts No: K9000289
Description:  SHIM;SUPPORT
Qty: 2
Ref. No.: 160
Parts No: K9000169
Description:  RING;SNAP
Qty: 12
Ref. No.: 170
Parts No: K9000170
Description:  RING;SNAP
Qty: 2
Ref. No.: 180
Parts No: K9000031
Description:  PIN;SLOT
Qty: 12
Ref. No.: *
Parts No: 401107-02121
Description:  SEAL KIT,FRONT AXLE(BRAKE)

Qty: 1

DL250-5 DIFFERENTIAL CARRIER - FRONT AXLE
110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268 K9000270 130107-00028 K9000258 401003-00336 K9000260 K9000326 K9000259 110514-00067 K9000251 140107-00307
DL250-5 DIFFERENTIAL CARRIER - FRONT AXLE

Ref. No.: 10
Parts No: 110931-00756
Description:  HOUSING,DIFFERENTIAL
Qty: 1


Ref. No.: 20
Parts No: 140107-00006
Description:  BEARING,TAPER ROLLER
Qty: 1


Ref. No.: 30
Parts No: K9000205
Description:  RING;SPACER A=7.30
Qty: 1


Ref. No.: 30
Parts No: K9000206
Description:  RING;SPACER A=7.40
Qty: 1


Ref. No.: 30
Parts No: K9000207
Description:  RING;SPACER A=7.50
Qty: 1


Ref. No.: 30
Parts No: K9000208
Description:  RING;SPACER A=7.60
Qty: 1


Ref. No.: 30
Parts No: K9000209
Description:  RING;SPACER A=7.70
Qty: 1


Ref. No.: 30
Parts No: K9000210
Description:  RING;SPACER A=7.90
Qty: 1


Ref. No.: 30
Parts No: K9000211
Description:  RING;SPACER A=8.00
Qty: 1


Ref. No.: 30
Parts No: K9000212
Description:  RING;SPACER A=8.10
Qty: 1


Ref. No.: 30
Parts No: K9000213
Description:  RING;SPACER A=8.20
Qty: 1


Ref. No.: 30
Parts No: K9000214
Description:  RING;SPACER A=8.30
Qty: 1


Ref. No.: 30
Parts No: K9000215
Description:  RING;SPACER A=8.40
Qty: 1


Ref. No.: 30
Parts No: K9000216
Description:  RING;SPACER A=8.50
Qty: 1


Ref. No.: 30
Parts No: K9000217
Description:  RING;SPACER A=8.60
Qty: 1


Ref. No.: 30
Parts No: K9000218
Description:  RING;SPACER A=8.70
Qty: 1


Ref. No.: 30
Parts No: K9000219
Description:  RING;SPACER A=8.80
Qty: 1


Ref. No.: 30
Parts No: K9000220
Description:  RING;SPACER A=8.90
Qty: 1


Ref. No.: 30
Parts No: K9000221
Description:  RING;SPACER A=9.00
Qty: 1


Ref. No.: 30
Parts No: K9000222
Description:  RING;SPACER A=7.80
Qty: 1


Ref. No.: 30
Parts No: K9000223
Description:  RING;SPACER A=7.82
Qty: 1


Ref. No.: 30
Parts No: K9000224
Description:  RING;SPACER A=7.84
Qty: 1


Ref. No.: 30
Parts No: K9000225
Description:  RING;SPACER A=7.86
Qty: 1


Ref. No.: 30
Parts No: K9000226
Description:  RING;SPACER A=7.88
Qty: 1


Ref. No.: 30
Parts No: K9000227
Description:  RING;SPACER A=7.92
Qty: 1


Ref. No.: 30
Parts No: K9000228
Description:  RING;SPACER A=7.94
Qty: 1


Ref. No.: 30
Parts No: K9000229
Description:  RING;SPACER A=7.96
Qty: 1


Ref. No.: 30
Parts No: K9000230
Description:  RING;SPACER A=7.98
Qty: 1


Ref. No.: 30
Parts No: K9000231
Description:  RING;SPACER A=8.02
Qty: 1


Ref. No.: 30
Parts No: K9000232
Description:  RING;SPACER A=8.04
Qty: 1


Ref. No.: 30
Parts No: K9000233
Description:  RING;SPACER A=8.06
Qty: 1


Ref. No.: 30
Parts No: K9000234
Description:  RING;SPACER A=8.08
Qty: 1


Ref. No.: 30
Parts No: K9000235
Description:  RING;SPACER A=8.12
Qty: 1


Ref. No.: 30
Parts No: K9000236
Description:  RING;SPACER A=8.14
Qty: 1


Ref. No.: 30
Parts No: K9000237
Description:  RING;SPACER A=8.16
Qty: 1


Ref. No.: 30
Parts No: K9000238
Description:  RING;SPACER A=8.18
Qty: 1


Ref. No.: 40
Parts No: 140107-00008
Description:  BEARING,ROLLER
Qty: 1


Ref. No.: 50
Parts No: K9000308
Description:  WASHER S=0.7
Qty: 1


Ref. No.: 50
Parts No: K9000309
Description:  WASHER S=0.8
Qty: 1


Ref. No.: 50
Parts No: K9000310
Description:  WASHER S=0.9
Qty: 1


Ref. No.: 50
Parts No: K9000311
Description:  WASHER S=1.0
Qty: 1


Ref. No.: 50
Parts No: K9000312
Description:  WASHER S=1.1
Qty: 1


Ref. No.: 50
Parts No: K9000313
Description:  WASHER S=1.2
Qty: 1


Ref. No.: 50
Parts No: K9000314
Description:  WASHER S=1.3
Qty: 1


Ref. No.: 50
Parts No: K9000315
Description:  WASHER S=1.4
Qty: 1


Ref. No.: 50
Parts No: K9000316
Description:  WASHER S=1.5
Qty: 1


Ref. No.: 50
Parts No: K9000629
Description:  WASHER S=0.2
Qty: 1


Ref. No.: 50
Parts No: K9000630
Description:  WASHER S=0.1
Qty: 1


Ref. No.: 60
Parts No: K9000245
Description:  SEAL;SHAFT
Qty: 1


Ref. No.: 70
Parts No: K9000204
Description:  WASHER A=5.00
Qty: 1


Ref. No.: 80
Parts No: K9000250
Description:  NUT;SLOTTED
Qty: 1


Ref. No.: 100
Parts No: 120705-00003
Description:  SCREW,PLUG
Qty: 3


Ref. No.: 100A
Parts No: 1.180-00135
Description: . O-RING
Qty: 1


Ref. No.: 110
Parts No: 130407-00043
Description:  GEAR SET,BEVEL
Qty: 1


Ref. No.: 120
Parts No: 430215-00604
Description:  FLANGE;INPUT
Qty: 1


Ref. No.: 130
Parts No: 160503-00011
Description:  PROTECTION
Qty: 1


Ref. No.: 1
Parts No: 110931-00748
Description:  HOUSING,DIFFERENTIAL
Qty: 1


Ref. No.: 2
Parts No: K9000262
Description:  WASHER;THRUST
Qty: 2


Ref. No.: 3
Parts No: K9000261
Description:  WASHER;THRUST
Qty: 2


Ref. No.: 4
Parts No: K9000266
Description:  DISC;O.CLUTCH S=3.00
Qty: 4


Ref. No.: 4
Parts No: K9000265
Description:  DISC;O.CLUTCH S=2.70
Qty: 4


Ref. No.: 4
Parts No: K9000267
Description:  DISC;O.CLUTCH S=2.90
Qty: 4


Ref. No.: 4
Parts No: K9000264
Description:  DISC;O.CLUTCH S=3.10
Qty: 4


Ref. No.: 4
Parts No: K9000268
Description:  DISC;O.CLUTCH S=3.20
Qty: 4


Ref. No.: 4
Parts No: K9000270
Description:  DISC;O.CLUTCH S=3.30
Qty: 4


Ref. No.: 4
Parts No: 130107-00028
Description:  DISC,CLUTCH;OUTER S=3.5
Qty: 4


Ref. No.: 5
Parts No: K9000258
Description:  DISC;I.CLUTCH
Qty: 4


Ref. No.: 6
Parts No: 401003-00336
Description:  RING,PRESSURE
Qty: 3


Ref. No.: 7
Parts No: K9000260
Description:  AXLE;DIFFERENTIAL
Qty: 2


Ref. No.: 8
Parts No: K9000326
Description:  GEAR;AXLE BEVEL
Qty: 2


Ref. No.: 9
Parts No: K9000259
Description:  GEAR;BEVEL
Qty: 4


Ref. No.: 11
Parts No: 110514-00067
Description:  COVER,HOUSING
Qty: 1


Ref. No.: 13
Parts No: K9000251
Description:  SCREW;LOCKING
Qty: 20


Ref. No.: 14
Parts No: 140107-00307
Description:  BEARING,TAPER ROLLER
Qty: 2

DL250-5 AXLE CASING - FRONT AXLE
190113-00054 110947-00220 110947-00221 110947-00222 130712-00930 K9000186 K9000187 K9000188 K9000197 K9000198 120705-00669 401002-00732 K9002851 K9000176 120705-00002 1.180-00137 1.120-00180 K9000333 120705-00673 420406-00928 K9000177 K9000291 430221-00558 2.180-00346
[DL250-5] AXLE CASING - FRONT AXLE
Ref. No.: 10
Parts No: 190113-00054
Description:  HOUSING,AXLE
Qty: 2
Ref. No.: 20
Parts No: 110947-00220
Description:  SHIM S=0.8
Qty: 2
Ref. No.: 20
Parts No: 110947-00221
Description:  SHIM S=0.9
Qty: 2
Ref. No.: 20
Parts No: 110947-00222
Description:  SHIM S=1.0
Qty: 2
Ref. No.: 30
Parts No: 130712-00930
Description:  SHAFT,STUB
Qty: 2
Ref. No.: 40
Parts No: K9000186
Description:  SHIM S=0.60
Qty: 1
Ref. No.: 40
Parts No: K9000187
Description:  SHIM S=1.00
Qty: 1
Ref. No.: 40
Parts No: K9000188
Description:  SHIM S=1.60
Qty: 1
Ref. No.: 40
Parts No: K9000197
Description:  SHIM A=2.00
Qty: 1
Ref. No.: 40
Parts No: K9000198
Description:  SHIM A=2.50
Qty: 1
Ref. No.: 120
Parts No: 120705-00669
Description:  SCREW,HEX
Qty: 36
Ref. No.: 130
Parts No: 401002-00732
Description:  RING,O
Qty: 2
Ref. No.: 140
Parts No: K9002851
Description:  SCREW
Qty: 38
Ref. No.: 150
Parts No: K9000176
Description:  O-RING
Qty: 2
Ref. No.: 160
Parts No: 120705-00002
Description:  SCREW,PLUG
Qty: 2
Ref. No.: 160A
Parts No: 1.180-00137
Description: . O-RING
Qty: 2
Ref. No.: 220
Parts No: 1.120-00180
Description:  PLUG;SCREW
Qty: 1
Ref. No.: 226
Parts No: K9000333
Description:  RING;SEALING
Qty: 1
Ref. No.: 227
Parts No: 120705-00673
Description:  SCREW
Qty: 2
Ref. No.: 230
Parts No: 420406-00928
Description:  TUBE,BRAKE
Qty: 2
Ref. No.: 233
Parts No: K9000177
Description:  O-RING
Qty: 2
Ref. No.: 234
Parts No: K9000291
Description:  NUT;HEX.
Qty: 2
Ref. No.: 310
Parts No: 430221-00558
Description:  PLUG,SCREW
Qty: 2
Ref. No.: 310A
Parts No: 2.180-00346
Description: . O-RING

Qty: 1

DL250-5 OUTPUT - FRONT AXLE
110931-00757 1.420-00157 401107-00009 K9000324 140107-00289 130712-01897 120112-00778 110508-08588 120705-00672 K9000286 2.180-00284 130712-00811 130418-00002 130413-00032 120112-00895 401003-00005 120705-00002 1.180-00137 K9000179
DL250-5 OUTPUT - FRONT AXLE
Ref. No.: 10
Parts No: 110931-00757
Description:  HOUSING,BRAKE
Qty: 1


Ref. No.: 30
Parts No: 1.420-00157
Description:  VALVE;VENT
Qty: 1


Ref. No.: 40
Parts No: 401107-00009
Description:  SEAL
Qty: 1


Ref. No.: 60
Parts No: K9000324
Description:  BEARING;TAPER ROLLER
Qty: 1


Ref. No.: 70
Parts No: 140107-00289
Description:  BEARING,TAPER ROLLER
Qty: 1


Ref. No.: 80
Parts No: 130712-01897
Description:  SHAFT;OUTPUT
Qty: 1


Ref. No.: 85
Parts No: 120112-00778
Description:  BOLT,WHEEL
Qty: 12


Ref. No.: 100
Parts No: 110508-08588
Description:  COVER
Qty: 1


Ref. No.: 110
Parts No: 120705-00672
Description:  SCREW,LOCKING
Qty: 6


Ref. No.: 120
Parts No: K9000286
Description:  COVER
Qty: 1


Ref. No.: 130
Parts No: 2.180-00284
Description:  O-RING
Qty: 1


Ref. No.: 140
Parts No: 130712-00811
Description:  SHAFT,SUN GEAR
Qty: 1


Ref. No.: 152
Parts No: 130418-00002
Description:  GEAR;PLANET
Qty: 3


Ref. No.: 160
Parts No: 130413-00032
Description:  GEAR,PLANETARY
Qty: 1


Ref. No.: 180
Parts No: 120112-00895
Description:  BOLT,STOP
Qty: 1


Ref. No.: 200
Parts No: 401003-00005
Description:  RING,RETAINING
Qty: 4


Ref. No.: 210
Parts No: 120705-00002
Description:  SCREW,PLUG
Qty: 1


Ref. No.: 210A
Parts No: 1.180-00137
Description: . O-RING
Qty: 1


Ref. No.: 220
Parts No: K9000179
Description:  O-RING
Qty: 1

DL250-5 BRAKE - FRONT AXLE
130602-00889 K9000243 K9000241 K9000244 K9000242 K9000168 110947-00205 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407 110508-10725 120705-00671 401107-02121
DL250-5 BRAKE - FRONT AXLE

Ref. No.: 10
Parts No: 130602-00889
Description:  PISTON
Qty: 2


Ref. No.: 20
Parts No: K9000243
Description:  U-RING
Qty: 2


Ref. No.: 30
Parts No: K9000241
Description:  RING;SUPPORT
Qty: 2


Ref. No.: 40
Parts No: K9000244
Description:  U-RING
Qty: 2


Ref. No.: 50
Parts No: K9000242
Description:  RING;SUPPORT
Qty: 2


Ref. No.: 60
Parts No: K9000168
Description:  RING;GUIDE
Qty: 2


Ref. No.: 70
Parts No: 110947-00205
Description:  SHIM;END
Qty: 2


Ref. No.: 90
Parts No: K9002702
Description:  DISC;I.CLUTCH S=4.7
Qty: 8


Ref. No.: 100
Parts No: K9000287
Description:  DISC;O.CLUTCH
Qty: 8


Ref. No.: 110
Parts No: K9000327
Description:  DISC;O.CLUTCH A=2.0
Qty: 4


Ref. No.: 120
Parts No: K9006018
Description:  PIN
Qty: 12


Ref. No.: 130
Parts No: 120808-00531
Description:  WASHER
Qty: 2


Ref. No.: 140
Parts No: 111601-00407
Description:  SPRING,CUP
Qty: 2


Ref. No.: 150
Parts No: 110508-10725
Description:  COVER
Qty: 2


Ref. No.: 160
Parts No: 120705-00671
Description:  SCREW,HEX
Qty: 12


Ref. No.: *
Parts No: 401107-02121
Description:  SEAL KIT,FRONT AXLE(BRAKE)
Qty: 1

DL250-5 DIFFERENTIAL CARRIER - REAR AXLE
K9006053 K9000719 K9000631 K9000632 K9000633 K9000634 K9000635 K9000636 K9000637 K9000638 K9000639 K9000640 K9000641 1.109-00091 K9000720 K9000721 K9000722 K9000723 K9000724 K9000725 K9000726 K9000727 K9000728 K9000729 K9000730 K9000731 K9000732 K9000733 K9000645 K9000646 K9000647 120705-00003 1.180-00135 K9006040 K9000708 K9006041 K9006050 K9006025 110931-00800 130107-00023 130107-00024 130107-00025 130107-00026 K9006064 130407-00053 130407-00054 120816-00116 190105-00011 K9006020 K9006021 K9006065 K9000251 1.109-00073 190105-00012
DL250-5 DIFFERENTIAL CARRIER - REAR AXLE


 Ref. No.: 10
Parts No: K9006053
Description:  HOUSING;AXLE
Qty: 1
Ref. No.: 20
Parts No: K9000719
Description:  BEARING;ROLLER
Qty: 1
Ref. No.: 30
Parts No: K9000631
Description:  WASHER;SPACING S=8.8
Qty: 1
Ref. No.: 30
Parts No: K9000632
Description:  WASHER;SPACING S=8.7
Qty: 1
Ref. No.: 30
Parts No: K9000633
Description:  WASHER;SPACING S=8.6
Qty: 1
Ref. No.: 30
Parts No: K9000634
Description:  WASHER;SPACING S=8.5
Qty: 1
Ref. No.: 30
Parts No: K9000635
Description:  WASHER;SPACING S=8.4
Qty: 1
Ref. No.: 30
Parts No: K9000636
Description:  WASHER;SPACING S=8.3
Qty: 1
Ref. No.: 30
Parts No: K9000637
Description:  WASHER;SPACING S=8.9
Qty: 1
Ref. No.: 30
Parts No: K9000638
Description:  WASHER;SPACING S=9.1
Qty: 1
Ref. No.: 30
Parts No: K9000639
Description:  WASHER;SPACING S=9.2
Qty: 1
Ref. No.: 30
Parts No: K9000640
Description:  WASHER;SPACING S=9.3
Qty: 1
Ref. No.: 30
Parts No: K9000641
Description:  WASHER;SPACING S=9.4
Qty: 1
Ref. No.: 40
Parts No: 1.109-00091
Description:  BEARING;ROLLER
Qty: 1
Ref. No.: 50
Parts No: K9000720
Description:  WASHER S=0.7
Qty: 1
Ref. No.: 50
Parts No: K9000721
Description:  WASHER S=0.8
Qty: 1
Ref. No.: 50
Parts No: K9000722
Description:  WASHER S=0.9
Qty: 1
Ref. No.: 50
Parts No: K9000723
Description:  WASHER S=1.0
Qty: 1
Ref. No.: 50
Parts No: K9000724
Description:  WASHER S=1.2
Qty: 1
Ref. No.: 50
Parts No: K9000725
Description:  WASHER S=1.3
Qty: 1
Ref. No.: 50
Parts No: K9000726
Description:  WASHER S=1.4
Qty: 1
Ref. No.: 50
Parts No: K9000727
Description:  WASHER S=1.5
Qty: 1
Ref. No.: 50
Parts No: K9000728
Description:  WASHER S=1.6
Qty: 1
Ref. No.: 50
Parts No: K9000729
Description:  WASHER S=1.7
Qty: 1
Ref. No.: 50
Parts No: K9000730
Description:  WASHER S=1.8
Qty: 1
Ref. No.: 50
Parts No: K9000731
Description:  WASHER S=1.9
Qty: 1
Ref. No.: 50
Parts No: K9000732
Description:  WASHER S=2.0
Qty: 1
Ref. No.: 50
Parts No: K9000733
Description:  WASHER S=1.1
Qty: 1
Ref. No.: 60
Parts No: K9000645
Description:  SEAL;SHAFT
Qty: 1
Ref. No.: 70
Parts No: K9000646
Description:  WASHER
Qty: 1
Ref. No.: 80
Parts No: K9000647
Description:  NUT;HEX.
Qty: 1
Ref. No.: 100
Parts No: 120705-00003
Description:  SCREW,PLUG
Qty: 2
Ref. No.: 100A
Parts No: 1.180-00135
Description: . O-RING
Qty: 1
Ref. No.: 110
Parts No: K9006040
Description:  BEVEL GEAR SET
Qty: 1
Ref. No.: 120
Parts No: K9000708
Description:  FLANGE;INPUT
Qty: 1
Ref. No.: 130
Parts No: K9006041
Description:  PROTECT;SHEET
Qty: 1
Ref. No.: 140
Parts No: K9006050
Description:  FLANGE
Qty: 1
Ref. No.: 150
Parts No: K9006025
Description:  SCREW;HEXAGON
Qty: 4
Ref. No.: 2
Parts No: 110931-00800
Description:  HOUSING,DIFFERENTIAL
Qty: 1
Ref. No.: 3
Parts No: 130107-00023
Description:  DISC,CLUTCH;OUTER T=1.8
Qty: 9
Ref. No.: 3
Parts No: 130107-00024
Description:  DISC,CLUTCH;OUTER T=1.9
Qty: 9
Ref. No.: 3
Parts No: 130107-00025
Description:  DISC,CLUTCH;OUTER T=2.0
Qty: 9
Ref. No.: 4
Parts No: 130107-00026
Description:  DISC,CLUTCH;INNER T=1.5
Qty: 8
Ref. No.: 5
Parts No: K9006064
Description:  WASHER;THRUST
Qty: 2
Ref. No.: 6
Parts No: 130407-00053
Description:  GEAR,BEVEL
Qty: 2
Ref. No.: 7
Parts No: 130407-00054
Description:  GEAR,BEVEL
Qty: 4
Ref. No.: 8
Parts No: 120816-00116
Description:  WASHER,THRUST
Qty: 4
Ref. No.: 9
Parts No: 190105-00011
Description:  AXLE,DIFFERENTIAL
Qty: 1
Ref. No.: 11
Parts No: K9006020
Description:  PIN
Qty: 2
Ref. No.: 12
Parts No: K9006021
Description:  PIN
Qty: 2
Ref. No.: 13
Parts No: K9006065
Description:  COVER;HOUSING
Qty: 1
Ref. No.: 14
Parts No: K9000251
Description:  SCREW;LOCKING
Qty: 12
Ref. No.: 15
Parts No: 1.109-00073
Description:  BEARING;TAPPER ROLLER
Qty: 2
Ref. No.: 16
Parts No: 190105-00012
Description:  AXLE,DIFFERENTIAL
Qty: 2

DL250-5 AXLE CASING - REAR AXLE
K9006044 K9006028 K9006029 K9006030 K9006031 K9006032 130712-00920 K9000764 K9000765 K9000766 K9000767 1.120-00134 K9006022 K9000758 K9000176 120705-00821 1.180-00137
DL250-5 AXLE CASING - REAR AXLE

Ref. No.: 10
Parts No: K9006044
Description:  CASING;AXLE
Qty: 2
Ref. No.: 15
Parts No: K9006028
Description:  SHIM A=0,8
Qty: 1
Ref. No.: 15
Parts No: K9006029
Description:  SHIM A=0,9
Qty: 1
Ref. No.: 15
Parts No: K9006030
Description:  SHIM A=1,0
Qty: 1
Ref. No.: 15
Parts No: K9006031
Description:  SHIM A=1,1
Qty: 1
Ref. No.: 15
Parts No: K9006032
Description:  SHIM A=1,2
Qty: 1
Ref. No.: 30
Parts No: 130712-00920
Description:  SHAFT,STUB
Qty: 2
Ref. No.: 40
Parts No: K9000764
Description:  WASHER S=0.2
Qty: 1
Ref. No.: 40
Parts No: K9000765
Description:  WASHER S=0.4
Qty: 1
Ref. No.: 40
Parts No: K9000766
Description:  WASHER S=1.0
Qty: 1
Ref. No.: 40
Parts No: K9000767
Description:  WASHER S=1.5
Qty: 1
Ref. No.: 120
Parts No: 1.120-00134
Description:  SCREW;HEXAGON
Qty: 36
Ref. No.: 130
Parts No: K9006022
Description:  O-RING
Qty: 2
Ref. No.: 140
Parts No: K9000758
Description:  SCREW;HEX.
Qty: 24
Ref. No.: 150
Parts No: K9000176
Description:  O-RING
Qty: 2
Ref. No.: 160
Parts No: 120705-00821
Description:  SCREW,PLUG
Qty: 2
Ref. No.: 160A
Parts No: 1.180-00137
Description: . O-RING

Qty: 1

DL250-5 OUTPUT - REAR AXLE
K9000198 120705-00669 401002-00732 K9002851 K9000176 120705-00002 1.180-00137 1.120-00180 K9000333 120705-00673 420406-00928 K9000177 K9000291 430221-00558 2.180-00346 110931-00757 1.420-00157 401107-00009 K9000324 140107-00289 130712-01897 120112-00778 110508-08588 120705-00672 K9000286 2.180-00284 130712-00811 130418-00002 130413-00032 120112-00895 401003-00005 120705-00002 1.180-00137 K9000179 130602-00889 K9000243 K9000241 K9000244 K9000242 K9000168 110947-00205 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407 110508-10725 120705-00671 401107-02121 K9006053 K9000719 K9000631 K9000632 K9000633 K9000634 K9000635 K9000636 K9000637 K9000638 K9000639 K9000640 K9000641 1.109-00091 K9000720 K9000721 K9000722 K9000723 K9000724 K9000725 K9000726 K9000727 K9000728 K9000729 K9000730 K9000731 K9000732 K9000733 K9000645 K9000646 K9000647 120705-00003 1.180-00135 K9006040 K9000708 K9006041 K9006050 K9006025 110931-00800 130107-00023 130107-00024 130107-00025 130107-00026 K9006064 130407-00053 130407-00054 120816-00116
DL250-5 OUTPUT - REAR AXLE
Ref. No.: 10
Parts No: 110931-00801
Description:  HOUSING,BRAKE
Qty: 1
Ref. No.: 30
Parts No: 1.420-00157
Description:  VALVE;VENT
Qty: 1
Ref. No.: 40
Parts No: 401107-00009
Description:  SEAL
Qty: 1
Ref. No.: 60
Parts No: 140107-00289
Description:  BEARING,TAPER ROLLER
Qty: 1
Ref. No.: 70
Parts No: K9006037
Description:  BEARING;TAPER ROLLER
Qty: 1
Ref. No.: 80
Parts No: K9006055
Description:  SHAFT;DUTPUT
Qty: 1
Ref. No.: 90
Parts No: K9002864
Description:  BOLT;WHEEL
Qty: 12
Ref. No.: 100
Parts No: K9006054
Description:  COVER
Qty: 1
Ref. No.: 110
Parts No: 120705-00672
Description:  SCREW,LOCKING
Qty: 4
Ref. No.: 120
Parts No: K9000286
Description:  COVER
Qty: 1
Ref. No.: 130
Parts No: 2.180-00284
Description:  O-RING
Qty: 1
Ref. No.: 140
Parts No: K9006051
Description:  SHAFT;SUN GEAR
Qty: 1
Ref. No.: 152
Parts No: K9002965
Description:  GEAR;PLANET
Qty: 4
Ref. No.: 160
Parts No: 130413-00033
Description:  GEAR,PLANETARY
Qty: 1
Ref. No.: 180
Parts No: 120112-00895
Description:  BOLT,STOP
Qty: 1
Ref. No.: 200
Parts No: K9000777
Description:  RING;RETAINING
Qty: 4
Ref. No.: 210
Parts No: 120705-00002
Description:  SCREW,PLUG
Qty: 1
Ref. No.: 210A
Parts No: 1.180-00137
Description: . O-RING

Qty: 1


DL250-5 BRAKE - REAR AXLE
110947-00263 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407 110508-10725 K9006024 1.120-00180 K9000333 120705-00822 1.180-00124 K9006042 1.120-00093 120705-00823 K9002821 120705-00003 1.180-00135 110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268 K9000270 130107-00028 K9000258 401003-00336 K9000260 K9000326 K9000259 110514-00067 K9000251 140107-00307 190113-00054 110947-00220 110947-00221 110947-00222 130712-00930 K9000186 K9000187 K9000188 K9000197
DL250-5 BRAKE - REAR AXLE
    Ref. No.: 10
    Parts No: 130602-00889
    Description:  PISTON
    Qty: 2
    Ref. No.: 20
    Parts No: K9006035
    Description:  U-RING
    Qty: 2
    Ref. No.: 30
    Parts No: K9000241
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 40
    Parts No: K9006036
    Description:  U-RING
    Qty: 2
    Ref. No.: 50
    Parts No: K9000242
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 60
    Parts No: K9000168
    Description:  RING;GUIDE
    Qty: 2
    Ref. No.: 70
    Parts No: 110947-00263
    Description:  SHIM;END
    Qty: 2
    Ref. No.: 90
    Parts No: K9002702
    Description:  DISC;I.CLUTCH S=4.7
    Qty: 8
    Ref. No.: 100
    Parts No: K9000287
    Description:  DISC;O.CLUTCH
    Qty: 6
    Ref. No.: 110
    Parts No: K9000327
    Description:  DISC;O.CLUTCH A=2.0
    Qty: 4
    Ref. No.: 120
    Parts No: K9006018
    Description:  PIN
    Qty: 12
    Ref. No.: 130
    Parts No: 120808-00531
    Description:  WASHER
    Qty: 2
    Ref. No.: 140
    Parts No: 111601-00407
    Description:  SPRING,CUP
    Qty: 2
    Ref. No.: 150
    Parts No: 110508-10725
    Description:  COVER
    Qty: 2
    Ref. No.: 160
    Parts No: K9006024
    Description:  SCREW;HEXAGON
    Qty: 12

DL250-5 AXLE PIPING - REAR AXLE
1.120-00180 K9000333 120705-00822 1.180-00124 K9006042 1.120-00093 120705-00823 K9002821 120705-00003 1.180-00135
DL250-5 AXLE PIPING - REAR AXLE
    Ref. No.: 20
    Parts No: 1.120-00180
    Description:  PLUG;SCREW
    Qty: 2
    Ref. No.: 26
    Parts No: K9000333
    Description:  RING;SEALING
    Qty: 2
    Ref. No.: 27
    Parts No: 120705-00822
    Description:  SCREW
    Qty: 2
    Ref. No.: 27A
    Parts No: 1.180-00124
    Description: . O-RING
    Qty: 1
    Ref. No.: 30
    Parts No: K9006042
    Description:  TUBE;BRAKE
    Qty: 2
    Ref. No.: 34
    Parts No: 1.120-00093
    Description:  SCREW;CAP
    Qty: 4
    Ref. No.: 90
    Parts No: 120705-00823
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 90A
    Parts No: K9002821
    Description: . O-RING
    Qty: 1
    Ref. No.: 100
    Parts No: 120705-00003
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 100A
    Parts No: 1.180-00135
    Description: . O-RING
    Qty: 1





DL250-5K DIFFERENTIAL CARRIER - FRONT AXLE
110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235 K9000236 K9000237 K9000238 140107-00008 K9000308 K9000309 K9000310 K9000311 K9000312 K9000313 K9000314 K9000315 K9000316 K9000629 K9000630 K9000245 K9000204 K9000250 120705-00003 1.180-00135 130407-00043 430215-00604 160503-00011 110931-00748 K9000262 K9000261 K9000266 K9000265 K9000267 K9000264 K9000268 K9000270 130107-00028 K9000258 401003-00336 K9000260 K9000326 K9000259 110514-00067 K9000251 140107-00307
DL250-5K DIFFERENTIAL CARRIER - FRONT AXLE
    Ref. No.: 10

    Parts No: 110931-00756
    Description:  HOUSING,DIFFERENTIAL
    Qty: 1
    Ref. No.: 20
    Parts No: 140107-00006
    Description:  BEARING,TAPER ROLLER
    Qty: 1
    Ref. No.: 30
    Parts No: K9000205
    Description:  RING;SPACER A=7.30
    Qty: 1
    Ref. No.: 30
    Parts No: K9000206
    Description:  RING;SPACER A=7.40
    Qty: 1
    Ref. No.: 30
    Parts No: K9000207
    Description:  RING;SPACER A=7.50
    Qty: 1
    Ref. No.: 30
    Parts No: K9000208
    Description:  RING;SPACER A=7.60
    Qty: 1
    Ref. No.: 30
    Parts No: K9000209
    Description:  RING;SPACER A=7.70
    Qty: 1
    Ref. No.: 30
    Parts No: K9000210
    Description:  RING;SPACER A=7.90
    Qty: 1
    Ref. No.: 30
    Parts No: K9000211
    Description:  RING;SPACER A=8.00
    Qty: 1
    Ref. No.: 30
    Parts No: K9000212
    Description:  RING;SPACER A=8.10
    Qty: 1
    Ref. No.: 30
    Parts No: K9000213
    Description:  RING;SPACER A=8.20
    Qty: 1
    Ref. No.: 30
    Parts No: K9000214
    Description:  RING;SPACER A=8.30
    Qty: 1
    Ref. No.: 30
    Parts No: K9000215
    Description:  RING;SPACER A=8.40
    Qty: 1
    Ref. No.: 30
    Parts No: K9000216
    Description:  RING;SPACER A=8.50
    Qty: 1
    Ref. No.: 30
    Parts No: K9000217
    Description:  RING;SPACER A=8.60
    Qty: 1
    Ref. No.: 30
    Parts No: K9000218
    Description:  RING;SPACER A=8.70
    Qty: 1
    Ref. No.: 30
    Parts No: K9000219
    Description:  RING;SPACER A=8.80
    Qty: 1
    Ref. No.: 30
    Parts No: K9000220
    Description:  RING;SPACER A=8.90
    Qty: 1
    Ref. No.: 30
    Parts No: K9000221
    Description:  RING;SPACER A=9.00
    Qty: 1
    Ref. No.: 30
    Parts No: K9000222
    Description:  RING;SPACER A=7.80
    Qty: 1
    Ref. No.: 30
    Parts No: K9000223
    Description:  RING;SPACER A=7.82
    Qty: 1
    Ref. No.: 30
    Parts No: K9000224
    Description:  RING;SPACER A=7.84
    Qty: 1
    Ref. No.: 30
    Parts No: K9000225
    Description:  RING;SPACER A=7.86
    Qty: 1
    Ref. No.: 30
    Parts No: K9000226
    Description:  RING;SPACER A=7.88
    Qty: 1
    Ref. No.: 30
    Parts No: K9000227
    Description:  RING;SPACER A=7.92
    Qty: 1
    Ref. No.: 30
    Parts No: K9000228
    Description:  RING;SPACER A=7.94
    Qty: 1
    Ref. No.: 30
    Parts No: K9000229
    Description:  RING;SPACER A=7.96
    Qty: 1
    Ref. No.: 30
    Parts No: K9000230
    Description:  RING;SPACER A=7.98
    Qty: 1
    Ref. No.: 30
    Parts No: K9000231
    Description:  RING;SPACER A=8.02
    Qty: 1
    Ref. No.: 30
    Parts No: K9000232
    Description:  RING;SPACER A=8.04
    Qty: 1
    Ref. No.: 30
    Parts No: K9000233
    Description:  RING;SPACER A=8.06
    Qty: 1
    Ref. No.: 30
    Parts No: K9000234
    Description:  RING;SPACER A=8.08
    Qty: 1
    Ref. No.: 30
    Parts No: K9000235
    Description:  RING;SPACER A=8.12
    Qty: 1
    Ref. No.: 30
    Parts No: K9000236
    Description:  RING;SPACER A=8.14
    Qty: 1
    Ref. No.: 30
    Parts No: K9000237
    Description:  RING;SPACER A=8.16
    Qty: 1
    Ref. No.: 30
    Parts No: K9000238
    Description:  RING;SPACER A=8.18
    Qty: 1
    Ref. No.: 40
    Parts No: 140107-00008
    Description:  BEARING,ROLLER
    Qty: 1
    Ref. No.: 50
    Parts No: K9000308
    Description:  WASHER S=0.7
    Qty: 1
    Ref. No.: 50
    Parts No: K9000309
    Description:  WASHER S=0.8
    Qty: 1
    Ref. No.: 50
    Parts No: K9000310
    Description:  WASHER S=0.9
    Qty: 1
    Ref. No.: 50
    Parts No: K9000311
    Description:  WASHER S=1.0
    Qty: 1
    Ref. No.: 50
    Parts No: K9000312
    Description:  WASHER S=1.1
    Qty: 1
    Ref. No.: 50
    Parts No: K9000313
    Description:  WASHER S=1.2
    Qty: 1
    Ref. No.: 50
    Parts No: K9000314
    Description:  WASHER S=1.3
    Qty: 1
    Ref. No.: 50
    Parts No: K9000315
    Description:  WASHER S=1.4
    Qty: 1
    Ref. No.: 50
    Parts No: K9000316
    Description:  WASHER S=1.5
    Qty: 1
    Ref. No.: 50
    Parts No: K9000629
    Description:  WASHER S=0.2
    Qty: 1
    Ref. No.: 50
    Parts No: K9000630
    Description:  WASHER S=0.1
    Qty: 1
    Ref. No.: 60
    Parts No: K9000245
    Description:  SEAL;SHAFT
    Qty: 1
    Ref. No.: 70
    Parts No: K9000204
    Description:  WASHER A=5.00
    Qty: 1
    Ref. No.: 80
    Parts No: K9000250
    Description:  NUT;SLOTTED
    Qty: 1
    Ref. No.: 100
    Parts No: 120705-00003
    Description:  SCREW,PLUG
    Qty: 3
    Ref. No.: 100A
    Parts No: 1.180-00135
    Description: . O-RING
    Qty: 1
    Ref. No.: 110
    Parts No: 130407-00043
    Description:  GEAR SET,BEVEL
    Qty: 1
    Ref. No.: 120
    Parts No: 430215-00604
    Description:  FLANGE;INPUT
    Qty: 1
    Ref. No.: 130
    Parts No: 160503-00011
    Description:  PROTECTION
    Qty: 1
    Ref. No.: 1
    Parts No: 110931-00748
    Description:  HOUSING,DIFFERENTIAL
    Qty: 1
    Ref. No.: 2
    Parts No: K9000262
    Description:  WASHER;THRUST
    Qty: 2
    Ref. No.: 3
    Parts No: K9000261
    Description:  WASHER;THRUST
    Qty: 2
    Ref. No.: 4
    Parts No: K9000266
    Description:  DISC;O.CLUTCH S=3.00
    Qty: 4
    Ref. No.: 4
    Parts No: K9000265
    Description:  DISC;O.CLUTCH S=2.70
    Qty: 4
    Ref. No.: 4
    Parts No: K9000267
    Description:  DISC;O.CLUTCH S=2.90
    Qty: 4
    Ref. No.: 4
    Parts No: K9000264
    Description:  DISC;O.CLUTCH S=3.10
    Qty: 4
    Ref. No.: 4
    Parts No: K9000268
    Description:  DISC;O.CLUTCH S=3.20
    Qty: 4
    Ref. No.: 4
    Parts No: K9000270
    Description:  DISC;O.CLUTCH S=3.30
    Qty: 4
    Ref. No.: 4
    Parts No: 130107-00028
    Description:  DISC,CLUTCH;OUTER S=3.5
    Qty: 4
    Ref. No.: 5
    Parts No: K9000258
    Description:  DISC;I.CLUTCH
    Qty: 4
    Ref. No.: 6
    Parts No: 401003-00336
    Description:  RING,PRESSURE
    Qty: 3
    Ref. No.: 7
    Parts No: K9000260
    Description:  AXLE;DIFFERENTIAL
    Qty: 2
    Ref. No.: 8
    Parts No: K9000326
    Description:  GEAR;AXLE BEVEL
    Qty: 2
    Ref. No.: 9
    Parts No: K9000259
    Description:  GEAR;BEVEL
    Qty: 4
    Ref. No.: 11
    Parts No: 110514-00067
    Description:  COVER,HOUSING
    Qty: 1
    Ref. No.: 13
    Parts No: K9000251
    Description:  SCREW;LOCKING
    Qty: 20
    Ref. No.: 14
    Parts No: 140107-00307
    Description:  BEARING,TAPER ROLLER
    Qty: 2
DL250-5K AXLE CASING - FRONT AXLE
190113-00054 110947-00220 110947-00221 110947-00222 130712-00930 K9000186 K9000187 K9000188 K9000197 K9000198 120705-00669 401002-00732 K9002851 K9000176 120705-00002 1.180-00137 1.120-00180 K9000333 120705-00673 420406-00928 K9000177 K9000291 430221-00558 2.180-00346
DL250-5K AXLE CASING - FRONT AXLE
    Ref. No.: 10
    Parts No: 190113-00054
    Description:  HOUSING,AXLE
    Qty: 2
    Ref. No.: 20
    Parts No: 110947-00220
    Description:  SHIM S=0.8
    Qty: 2
    Ref. No.: 20
    Parts No: 110947-00221
    Description:  SHIM S=0.9
    Qty: 2
    Ref. No.: 20
    Parts No: 110947-00222
    Description:  SHIM S=1.0
    Qty: 2
    Ref. No.: 30
    Parts No: 130712-00930
    Description:  SHAFT,STUB
    Qty: 2
    Ref. No.: 40
    Parts No: K9000186
    Description:  SHIM S=0.60
    Qty: 1
    Ref. No.: 40
    Parts No: K9000187
    Description:  SHIM S=1.00
    Qty: 1
    Ref. No.: 40
    Parts No: K9000188
    Description:  SHIM S=1.60
    Qty: 1
    Ref. No.: 40
    Parts No: K9000197
    Description:  SHIM A=2.00
    Qty: 1
    Ref. No.: 40
    Parts No: K9000198
    Description:  SHIM A=2.50
    Qty: 1
    Ref. No.: 120
    Parts No: 120705-00669
    Description:  SCREW,HEX
    Qty: 36
    Ref. No.: 130
    Parts No: 401002-00732
    Description:  RING,O
    Qty: 2
    Ref. No.: 140
    Parts No: K9002851
    Description:  SCREW
    Qty: 38
    Ref. No.: 150
    Parts No: K9000176
    Description:  O-RING
    Qty: 2
    Ref. No.: 160
    Parts No: 120705-00002
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 160A
    Parts No: 1.180-00137
    Description: . O-RING
    Qty: 2
    Ref. No.: 220
    Parts No: 1.120-00180
    Description:  PLUG;SCREW
    Qty: 1
    Ref. No.: 226
    Parts No: K9000333
    Description:  RING;SEALING
    Qty: 1
    Ref. No.: 227
    Parts No: 120705-00673
    Description:  SCREW
    Qty: 2
    Ref. No.: 230
    Parts No: 420406-00928
    Description:  TUBE,BRAKE
    Qty: 2
    Ref. No.: 233
    Parts No: K9000177
    Description:  O-RING
    Qty: 2
    Ref. No.: 234
    Parts No: K9000291
    Description:  NUT;HEX.
    Qty: 2
    Ref. No.: 310
    Parts No: 430221-00558
    Description:  PLUG,SCREW
    Qty: 2
    Ref. No.: 310A
    Parts No: 2.180-00346
    Description: . O-RING
    Qty: 1
DL250-5K OUTPUT - FRONT AXLE
110931-00757 1.420-00157 401107-00009 K9000324 140107-00289 130712-01897 120112-00778 110508-08588 120705-00672 K9000286 2.180-00284 130712-00811 130418-00002 130413-00032 120112-00895 401003-00005 120705-00002 1.180-00137 K9000179
DL250-5K OUTPUT - FRONT AXLE


    Ref. No.: 10

    Parts No: 110931-00757
    Description:  HOUSING,BRAKE
    Qty: 1
    Ref. No.: 30
    Parts No: 1.420-00157
    Description:  VALVE;VENT
    Qty: 1
    Ref. No.: 40
    Parts No: 401107-00009
    Description:  SEAL
    Qty: 1
    Ref. No.: 60
    Parts No: K9000324
    Description:  BEARING;TAPER ROLLER
    Qty: 1
    Ref. No.: 70
    Parts No: 140107-00289
    Description:  BEARING,TAPER ROLLER
    Qty: 1
    Ref. No.: 80
    Parts No: 130712-01897
    Description:  SHAFT;OUTPUT
    Qty: 1
    Ref. No.: 85
    Parts No: 120112-00778
    Description:  BOLT,WHEEL
    Qty: 12
    Ref. No.: 100
    Parts No: 110508-08588
    Description:  COVER
    Qty: 1
    Ref. No.: 110
    Parts No: 120705-00672
    Description:  SCREW,LOCKING
    Qty: 6
    Ref. No.: 120
    Parts No: K9000286
    Description:  COVER
    Qty: 1
    Ref. No.: 130
    Parts No: 2.180-00284
    Description:  O-RING
    Qty: 1
    Ref. No.: 140
    Parts No: 130712-00811
    Description:  SHAFT,SUN GEAR
    Qty: 1
    Ref. No.: 152
    Parts No: 130418-00002
    Description:  GEAR;PLANET
    Qty: 3
    Ref. No.: 160
    Parts No: 130413-00032
    Description:  GEAR,PLANETARY
    Qty: 1
    Ref. No.: 180
    Parts No: 120112-00895
    Description:  BOLT,STOP
    Qty: 1
    Ref. No.: 200
    Parts No: 401003-00005
    Description:  RING,RETAINING
    Qty: 4
    Ref. No.: 210
    Parts No: 120705-00002
    Description:  SCREW,PLUG
    Qty: 1
    Ref. No.: 210A
    Parts No: 1.180-00137
    Description: . O-RING
    Qty: 1
    Ref. No.: 220
    Parts No: K9000179
    Description:  O-RING
    Qty: 1
DL250-5K BRAKE - FRONT AXLE
120808-00531 111601-00407 110508-10725 120705-00671 401107-02121 K9006053 K9000719 K9000631 K9000632 K9000633 K9000634 K9000635 K9000636 K9000637 K9000638 K9000639 K9000640 K9000641 1.109-00091 K9000720 K9000721 K9000722 K9000723 K9000724 K9000725 K9000726 K9000727 K9000728 K9000729 K9000730 K9000731 K9000732 K9000733 K9000645 K9000646 K9000647 120705-00003 1.180-00135 K9006040 K9000708 K9006041 K9006050 K9006025 110931-00800 130107-00023 130107-00024 130107-00025 130107-00026 K9006064 130407-00053 130407-00054 120816-00116 190105-00011 K9006020 K9006021 K9006065 K9000251 1.109-00073 190105-00012 K9006044 K9006028 K9006029 K9006030 K9006031 K9006032 130712-00920 K9000764 K9000765 K9000766 K9000767 1.120-00134 K9006022 K9000758 K9000176 120705-00821 1.180-00137 110931-00801 1.420-00157 401107-00009 140107-00289 K9006037 K9006055 K9002864 K9006054 120705-00672 K9000286 2.180-00284 K9006051 K9002965 130413-00033 120112-00895 K9000777 120705-00002 1.180-00137 130602-00889 K9006035 K9000241 K9006036 K9000242 K9000168
 DL250-5K BRAKE - FRONT AXLE
    Ref. No.: 10
    Parts No: 130602-00889
    Description:  PISTON
    Qty: 2
    Ref. No.: 20
    Parts No: K9000243
    Description:  U-RING
    Qty: 2
    Ref. No.: 30
    Parts No: K9000241
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 40
    Parts No: K9000244
    Description:  U-RING
    Qty: 2
    Ref. No.: 50
    Parts No: K9000242
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 60
    Parts No: K9000168
    Description:  RING;GUIDE
    Qty: 2
    Ref. No.: 70
    Parts No: 110947-00205
    Description:  SHIM;END
    Qty: 2
    Ref. No.: 90
    Parts No: K9002702
    Description:  DISC;I.CLUTCH S=4.7
    Qty: 8
    Ref. No.: 100
    Parts No: K9000287
    Description:  DISC;O.CLUTCH
    Qty: 8
    Ref. No.: 110
    Parts No: K9000327
    Description:  DISC;O.CLUTCH A=2.0
    Qty: 4
    Ref. No.: 120
    Parts No: K9006018
    Description:  PIN
    Qty: 12
    Ref. No.: 130
    Parts No: 120808-00531
    Description:  WASHER
    Qty: 2
    Ref. No.: 140
    Parts No: 111601-00407
    Description:  SPRING,CUP
    Qty: 2
    Ref. No.: 150
    Parts No: 110508-10725
    Description:  COVER
    Qty: 2
    Ref. No.: 160
    Parts No: 120705-00671
    Description:  SCREW,HEX
    Qty: 12
    Ref. No.: *
    Parts No: 401107-02121
    Description:  SEAL KIT,FRONT AXLE(BRAKE)
    Qty: 1

DL250-5K DIFFERENTIAL CARRIER - REAR AXLE
K9006053 K9000719 K9000631 K9000632 K9000633 K9000634 K9000635 K9000636 K9000637 K9000638 K9000639 K9000640 K9000641 1.109-00091 K9000720 K9000721 K9000722 K9000723 K9000724 K9000725 K9000726 K9000727 K9000728 K9000729 K9000730 K9000731 K9000732 K9000733 K9000645 K9000646 K9000647 120705-00003 1.180-00135 K9006040 K9000708 K9006041 K9006050 K9006025 110931-00800 130107-00023 130107-00024 130107-00025 130107-00026 K9006064 130407-00053 130407-00054 120816-00116 190105-00011 K9006020 K9006021 K9006065 K9000251 1.109-00073 190105-00012
DL250-5K DIFFERENTIAL CARRIER - REAR AXLE
    Ref. No.: 10
    Parts No: K9006053
    Description:  HOUSING;AXLE
    Qty: 1
    Ref. No.: 20
    Parts No: K9000719
    Description:  BEARING;ROLLER
    Qty: 1
    Ref. No.: 30
    Parts No: K9000631
    Description:  WASHER;SPACING S=8.8
    Qty: 1
    Ref. No.: 30
    Parts No: K9000632
    Description:  WASHER;SPACING S=8.7
    Qty: 1
    Ref. No.: 30
    Parts No: K9000633
    Description:  WASHER;SPACING S=8.6
    Qty: 1
    Ref. No.: 30
    Parts No: K9000634
    Description:  WASHER;SPACING S=8.5
    Qty: 1
    Ref. No.: 30
    Parts No: K9000635
    Description:  WASHER;SPACING S=8.4
    Qty: 1
    Ref. No.: 30
    Parts No: K9000636
    Description:  WASHER;SPACING S=8.3
    Qty: 1
    Ref. No.: 30
    Parts No: K9000637
    Description:  WASHER;SPACING S=8.9
    Qty: 1
    Ref. No.: 30
    Parts No: K9000638
    Description:  WASHER;SPACING S=9.1
    Qty: 1
    Ref. No.: 30
    Parts No: K9000639
    Description:  WASHER;SPACING S=9.2
    Qty: 1
    Ref. No.: 30
    Parts No: K9000640
    Description:  WASHER;SPACING S=9.3
    Qty: 1
    Ref. No.: 30
    Parts No: K9000641
    Description:  WASHER;SPACING S=9.4
    Qty: 1
    Ref. No.: 40
    Parts No: 1.109-00091
    Description:  BEARING;ROLLER
    Qty: 1
    Ref. No.: 50
    Parts No: K9000720
    Description:  WASHER S=0.7
    Qty: 1
    Ref. No.: 50
    Parts No: K9000721
    Description:  WASHER S=0.8
    Qty: 1
    Ref. No.: 50
    Parts No: K9000722
    Description:  WASHER S=0.9
    Qty: 1
    Ref. No.: 50
    Parts No: K9000723
    Description:  WASHER S=1.0
    Qty: 1
    Ref. No.: 50
    Parts No: K9000724
    Description:  WASHER S=1.2
    Qty: 1
    Ref. No.: 50
    Parts No: K9000725
    Description:  WASHER S=1.3
    Qty: 1
    Ref. No.: 50
    Parts No: K9000726
    Description:  WASHER S=1.4
    Qty: 1
    Ref. No.: 50
    Parts No: K9000727
    Description:  WASHER S=1.5
    Qty: 1
    Ref. No.: 50
    Parts No: K9000728
    Description:  WASHER S=1.6
    Qty: 1
    Ref. No.: 50
    Parts No: K9000729
    Description:  WASHER S=1.7
    Qty: 1
    Ref. No.: 50
    Parts No: K9000730
    Description:  WASHER S=1.8
    Qty: 1
    Ref. No.: 50
    Parts No: K9000731
    Description:  WASHER S=1.9
    Qty: 1
    Ref. No.: 50
    Parts No: K9000732
    Description:  WASHER S=2.0
    Qty: 1
    Ref. No.: 50
    Parts No: K9000733
    Description:  WASHER S=1.1
    Qty: 1
    Ref. No.: 60
    Parts No: K9000645
    Description:  SEAL;SHAFT
    Qty: 1
    Ref. No.: 70
    Parts No: K9000646
    Description:  WASHER
    Qty: 1
    Ref. No.: 80
    Parts No: K9000647
    Description:  NUT;HEX.
    Qty: 1
    Ref. No.: 100
    Parts No: 120705-00003
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 100A
    Parts No: 1.180-00135
    Description: . O-RING
    Qty: 1
    Ref. No.: 110
    Parts No: K9006040
    Description:  BEVEL GEAR SET
    Qty: 1
    Ref. No.: 120
    Parts No: K9000708
    Description:  FLANGE;INPUT
    Qty: 1
    Ref. No.: 130
    Parts No: K9006041
    Description:  PROTECT;SHEET
    Qty: 1
    Ref. No.: 140
    Parts No: K9006050
    Description:  FLANGE
    Qty: 1
    Ref. No.: 150
    Parts No: K9006025
    Description:  SCREW;HEXAGON
    Qty: 4
    Ref. No.: 2
    Parts No: 110931-00800
    Description:  HOUSING,DIFFERENTIAL
    Qty: 1
    Ref. No.: 3
    Parts No: 130107-00023
    Description:  DISC,CLUTCH;OUTER T=1.8
    Qty: 9
    Ref. No.: 3
    Parts No: 130107-00024
    Description:  DISC,CLUTCH;OUTER T=1.9
    Qty: 9
    Ref. No.: 3
    Parts No: 130107-00025
    Description:  DISC,CLUTCH;OUTER T=2.0
    Qty: 9
    Ref. No.: 4
    Parts No: 130107-00026
    Description:  DISC,CLUTCH;INNER T=1.5
    Qty: 8
    Ref. No.: 5
    Parts No: K9006064
    Description:  WASHER;THRUST
    Qty: 2
    Ref. No.: 6
    Parts No: 130407-00053
    Description:  GEAR,BEVEL
    Qty: 2
    Ref. No.: 7
    Parts No: 130407-00054
    Description:  GEAR,BEVEL
    Qty: 4
    Ref. No.: 8
    Parts No: 120816-00116
    Description:  WASHER,THRUST
    Qty: 4
    Ref. No.: 9
    Parts No: 190105-00011
    Description:  AXLE,DIFFERENTIAL
    Qty: 1
    Ref. No.: 11
    Parts No: K9006020
    Description:  PIN
    Qty: 2
    Ref. No.: 12
    Parts No: K9006021
    Description:  PIN
    Qty: 2
    Ref. No.: 13
    Parts No: K9006065
    Description:  COVER;HOUSING
    Qty: 1
    Ref. No.: 14
    Parts No: K9000251
    Description:  SCREW;LOCKING
    Qty: 12
    Ref. No.: 15
    Parts No: 1.109-00073
    Description:  BEARING;TAPPER ROLLER
    Qty: 2
    Ref. No.: 16
    Parts No: 190105-00012
    Description:  AXLE,DIFFERENTIAL
    Qty: 2
DL250-5K AXLE CASING - REAR AXLE
K9006044 K9006028 K9006029 K9006030 K9006031 K9006032 130712-00920 K9000764 K9000765 K9000766 K9000767 1.120-00134 K9006022 K9000758 K9000176 120705-00821 1.180-00137
DL250-5K AXLE CASING - REAR AXLE
    Ref. No.: 10
    Parts No: K9006044
    Description:  CASING;AXLE
    Qty: 2
    Ref. No.: 15
    Parts No: K9006028
    Description:  SHIM A=0,8
    Qty: 1
    Ref. No.: 15
    Parts No: K9006029
    Description:  SHIM A=0,9
    Qty: 1
    Ref. No.: 15
    Parts No: K9006030
    Description:  SHIM A=1,0
    Qty: 1
    Ref. No.: 15
    Parts No: K9006031
    Description:  SHIM A=1,1
    Qty: 1
    Ref. No.: 15
    Parts No: K9006032
    Description:  SHIM A=1,2
    Qty: 1
    Ref. No.: 30
    Parts No: 130712-00920
    Description:  SHAFT,STUB
    Qty: 2
    Ref. No.: 40
    Parts No: K9000764
    Description:  WASHER S=0.2
    Qty: 1
    Ref. No.: 40
    Parts No: K9000765
    Description:  WASHER S=0.4
    Qty: 1
    Ref. No.: 40
    Parts No: K9000766
    Description:  WASHER S=1.0
    Qty: 1
    Ref. No.: 40
    Parts No: K9000767
    Description:  WASHER S=1.5
    Qty: 1
    Ref. No.: 120
    Parts No: 1.120-00134
    Description:  SCREW;HEXAGON
    Qty: 36
    Ref. No.: 130
    Parts No: K9006022
    Description:  O-RING
    Qty: 2
    Ref. No.: 140
    Parts No: K9000758
    Description:  SCREW;HEX.
    Qty: 24
    Ref. No.: 150
    Parts No: K9000176
    Description:  O-RING
    Qty: 2
    Ref. No.: 160
    Parts No: 120705-00821
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 160A
    Parts No: 1.180-00137
    Description: . O-RING
    Qty: 1
DL250-5K OUTPUT - REAR AXLE
K9000754 K9000755 K9000756 K9000757 K9000758 K9000759 2.114-00867 K9000615 K9000616 K9001889 K9001478 1.180-00135 K9000165 1.180-00137 K9000317 2.181-00495 1.180-00137 K9000165 K9000760 K9000239 K9000294 2.180-00277 K9000178 1.420-00157 1.120-00169 K9000180 K9000761 K9000300 2.180-00345 K9000177 K9000291 K9000762 K9000763 K9000764 K9000765 K9000766 K9000767 K9002963 K9000032 K9000179 K9000769 K9000176 K9000240 K9000323 K9000770 K9002964 K9000674 K9000173 K9000286 2.180-00284 K9000772 K9002965 K9002966 K9000277 K9002967 K9000777 K9000164 1.180-00137 K9002864 K9000290 K9000243 K9000241 K9000244 K9000242 K9000168 K9002702 K9000287 K9000327 K9000717 K9000172 K9000175 K9000289 K9000169 K9000170 K9000031 401107-02121 110931-00756 140107-00006 K9000205 K9000206 K9000207 K9000208 K9000209 K9000210 K9000211 K9000212 K9000213 K9000214 K9000215 K9000216 K9000217 K9000218 K9000219 K9000220 K9000221 K9000222 K9000223 K9000224 K9000225 K9000226 K9000227 K9000228 K9000229 K9000230 K9000231 K9000232 K9000233 K9000234 K9000235
DL250-5K OUTPUT - REAR AXLE
    Ref. No.: 10

    Parts No: 110931-00801
    Description:  HOUSING,BRAKE
    Qty: 1
    Ref. No.: 30
    Parts No: 1.420-00157
    Description:  VALVE;VENT
    Qty: 1
    Ref. No.: 40
    Parts No: 401107-00009
    Description:  SEAL
    Qty: 1
    Ref. No.: 60
    Parts No: 140107-00289
    Description:  BEARING,TAPER ROLLER
    Qty: 1
    Ref. No.: 70
    Parts No: K9006037
    Description:  BEARING;TAPER ROLLER
    Qty: 1
    Ref. No.: 80
    Parts No: K9006055
    Description:  SHAFT;DUTPUT
    Qty: 1
    Ref. No.: 90
    Parts No: K9002864
    Description:  BOLT;WHEEL
    Qty: 12
    Ref. No.: 100
    Parts No: K9006054
    Description:  COVER
    Qty: 1
    Ref. No.: 110
    Parts No: 120705-00672
    Description:  SCREW,LOCKING
    Qty: 4
    Ref. No.: 120
    Parts No: K9000286
    Description:  COVER
    Qty: 1
    Ref. No.: 130
    Parts No: 2.180-00284
    Description:  O-RING
    Qty: 1
    Ref. No.: 140
    Parts No: K9006051
    Description:  SHAFT;SUN GEAR
    Qty: 1
    Ref. No.: 152
    Parts No: K9002965
    Description:  GEAR;PLANET
    Qty: 4
    Ref. No.: 160
    Parts No: 130413-00033
    Description:  GEAR,PLANETARY
    Qty: 1
    Ref. No.: 180
    Parts No: 120112-00895
    Description:  BOLT,STOP
    Qty: 1
    Ref. No.: 200
    Parts No: K9000777
    Description:  RING;RETAINING
    Qty: 4
    Ref. No.: 210
    Parts No: 120705-00002
    Description:  SCREW,PLUG
    Qty: 1
    Ref. No.: 210A
    Parts No: 1.180-00137
    Description: . O-RING
    Qty: 1

 DL250-5K BRAKE - REAR AXLE
130602-00889 K9006035 K9000241 K9006036 K9000242 K9000168 110947-00263 K9002702 K9000287 K9000327 K9006018 120808-00531 111601-00407 110508-10725 K9006024
DL250-5K BRAKE - REAR AXLE
    Ref. No.: 10
    Parts No: 130602-00889
    Description:  PISTON
    Qty: 2
    Ref. No.: 20
    Parts No: K9006035
    Description:  U-RING
    Qty: 2
    Ref. No.: 30
    Parts No: K9000241
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 40
    Parts No: K9006036
    Description:  U-RING
    Qty: 2
    Ref. No.: 50
    Parts No: K9000242
    Description:  RING;SUPPORT
    Qty: 2
    Ref. No.: 60
    Parts No: K9000168
    Description:  RING;GUIDE
    Qty: 2
    Ref. No.: 70
    Parts No: 110947-00263
    Description:  SHIM;END
    Qty: 2
    Ref. No.: 90
    Parts No: K9002702
    Description:  DISC;I.CLUTCH S=4.7
    Qty: 8
    Ref. No.: 100
    Parts No: K9000287
    Description:  DISC;O.CLUTCH
    Qty: 6
    Ref. No.: 110
    Parts No: K9000327
    Description:  DISC;O.CLUTCH A=2.0
    Qty: 4
    Ref. No.: 120
    Parts No: K9006018
    Description:  PIN
    Qty: 12
    Ref. No.: 130
    Parts No: 120808-00531
    Description:  WASHER
    Qty: 2
    Ref. No.: 140
    Parts No: 111601-00407
    Description:  SPRING,CUP
    Qty: 2
    Ref. No.: 150
    Parts No: 110508-10725
    Description:  COVER
    Qty: 2
    Ref. No.: 160
    Parts No: K9006024
    Description:  SCREW;HEXAGON
    Qty: 12
DL250-5 AXLE PIPING - REAR AXLE
1.120-00180 K9000333 120705-00822 1.180-00124 K9006042 1.120-00093 120705-00823 K9002821 120705-00003 1.180-00135
DL250-5] AXLE PIPING - REAR AXLE
    Ref. No.: 20
    Parts No: 1.120-00180
    Description:  PLUG;SCREW
    Qty: 2
    Ref. No.: 26
    Parts No: K9000333
    Description:  RING;SEALING
    Qty: 2
    Ref. No.: 27
    Parts No: 120705-00822
    Description:  SCREW
    Qty: 2
    Ref. No.: 27A
    Parts No: 1.180-00124
    Description: . O-RING
    Qty: 1
    Ref. No.: 30
    Parts No: K9006042
    Description:  TUBE;BRAKE
    Qty: 2
    Ref. No.: 34
    Parts No: 1.120-00093
    Description:  SCREW;CAP
    Qty: 4
    Ref. No.: 90
    Parts No: 120705-00823
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 90A
    Parts No: K9002821
    Description: . O-RING
    Qty: 1
    Ref. No.: 100
    Parts No: 120705-00003
    Description:  SCREW,PLUG
    Qty: 2
    Ref. No.: 100A
    Parts No: 1.180-00135
    Description: . O-RING
    Qty: 1
